MOLT Fetch - CockroachDB

MOLT Fetch moves data from a source database into CockroachDB as part of a . You can use MOLT Fetch to migrate data from a PostgreSQL, MySQL, or Oracle source database. MOLT Fetch uses or to move the source data to cloud storage (Google Cloud Storage, Amazon S3, or Azure Blob Storage), a local file server, or local memory. Once the data is exported, MOLT Fetch loads the data into a target CockroachDB database.

Prerequisites

Supported databases

The following source databases are supported:

PostgreSQL 11-16
MySQL 5.7-8.4
Oracle Database 19c (Enterprise Edition) and 21c (Express Edition)

Database configuration

Ensure that the source and target schemas are identical, unless you enable automatic schema creation with the option. If you are creating the target schema manually, review the behaviors in .

MOLT Fetch does not support migrating sequences. If your source database contains sequences, refer to the . If a sequential key is necessary in your CockroachDB table, you must create it manually. After using MOLT Fetch to load the data onto the target, but before cutover, make sure to update each sequence’s current value using so that new inserts continue from the correct point.

If you plan to use cloud storage for the data migration, follow best practices.

User permissions

The SQL user running MOLT Fetch requires specific privileges on both the source and target databases:

Database	Required Privileges	Examples
PostgreSQL source	`CONNECT` on database. `USAGE` on schema. `SELECT` on tables to migrate.
MySQL source	`SELECT` on tables to migrate.
Oracle source	`CONNECT` and `CREATE SESSION`. `SELECT` and `FLASHBACK` on tables to migrate. `SELECT` on metadata views (`ALL_USERS`, `DBA_USERS`, `DBA_OBJECTS`, `DBA_SYNONYMS`, `DBA_TABLES`).
CockroachDB target	`ALL` on target database. `CREATE` on schema. `SELECT`, `INSERT`, `UPDATE`, `DELETE` on target tables. For `IMPORT INTO`: `SELECT`, `INSERT`, `DROP` on target tables. Optionally `EXTERNALIOIMPLICITACCESS` for implicit cloud storage authentication. For `COPY FROM`: `admin` role.

Target cluster session variable

Ensure that the statement_timeout is set to 0s for the CockroachDB user on the target cluster:

ALTER ROLE {crdb_user} SET statement_timeout = '0s';

How it works

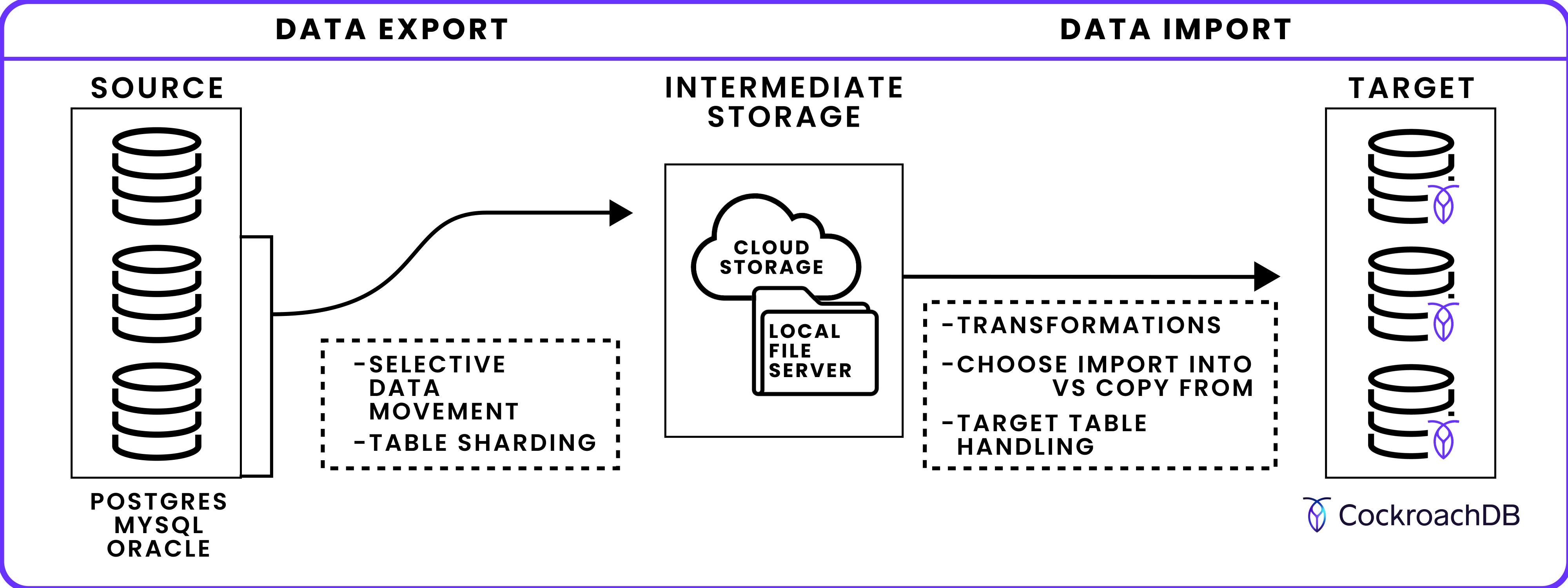

MOLT Fetch operates in two distinct phases to move data from the source databases to CockroachDB. The data export phase moves data to intermediate storage (either cloud storage or a local file server). The data import phase moves data from that intermediate storage to the CockroachDB cluster. For details on available modes, refer to Define fetch mode.

Data export phase

In this first phase, MOLT Fetch connects to the source database and exports table data to intermediate storage.

Selective data movement: By default, MOLT Fetch moves all data from the —source database to CockroachDB. If instead you want to move a subset of the available data, use the , , and flags.
Table sharding for concurrent export: Multiple tables and table shards can be exported simultaneously using and , with large tables divided into shards for parallel processing.
Load into intermediate storage: Define whether data is written to cloud storage (Amazon S3, Google Cloud Storage, Azure Blob Storage), a local file server, or directly to CockroachDB memory. Intermediate storage enables continuation after a MOLT Fetch failure by storing continuation tokens.

Data import phase

MOLT Fetch loads the exported data from intermediate storage to the target CockroachDB database.

IMPORT INTO vs. COPY FROM: This phase uses (faster, tables offline during import) or (slower, tables remain queryable) to move data.
Target table handling: Target tables can be automatically created, truncated, or left unchanged based on settings.
Schema/table transformations: Use JSON to map computed columns from source to target, map partitioned tables to a single target table, rename tables on the target database, or rename database schemas.

Refer to to learn how to use any flag for the molt fetch command.

Run MOLT Fetch

The following section describes how to use the command and how to set its main .

Specify source and target databases

Follow the recommendations in .

specifies the connection string of the source database. PostgreSQL or CockroachDB connection string:

--source 'postgresql://{username}:{password}@{host}:{port}/{database}'

MySQL connection string:

--source 'mysql://{username}:{password}@{protocol}({host}:{port})/{database}'

Oracle connection string:

--source 'oracle://{username}:{password}@{host}:{port}/{service_name}'

For Oracle Multitenant databases, specifies the container database (CDB) connection. specifies the pluggable database (PDB):

--source 'oracle://{username}:{password}@{host}:{port}/{pdb_service_name}'
--source-cdb 'oracle://{username}:{password}@{host}:{port}/{cdb_service_name}'

specifies the :

--target 'postgresql://{username}:{password}@{host}:{port}/{database}'

Define fetch mode

specifies the MOLT Fetch behavior. data-load (default) instructs MOLT Fetch to load the source data into CockroachDB:

--mode data-load

export-only instructs MOLT Fetch to export the source data to the specified cloud storage or local file server. It does not load the data into CockroachDB:

--mode export-only

import-only instructs MOLT Fetch to load the source data in the specified cloud storage or local file server into the CockroachDB target:

--mode import-only

Select data to migrate

By default, MOLT Fetch moves all data from the database to CockroachDB. Use the following flags to move a subset of data.

Schema and table selection

specifies a range of schema objects to move to CockroachDB, formatted as a POSIX regex string. For example, to move every table in the source database’s migration_schema schema:

--schema-filter 'migration_schema'

does not apply to MySQL sources because MySQL tables belong directly to the database specified in the connection string, not to a separate schema.

and specify tables to include and exclude from the migration, respectively, formatted as POSIX regex strings. For example, to move every source table that has “user” in the table name and exclude every source table that has “temp” in the table name:

--table-filter '.*user.*' --table-exclusion-filter '.*temp.*'

To filter tables during replication, use with .

Row-level filtering

Use to specify the path to a JSON file that defines row-level filtering for data load. This enables you to move a subset of data in a table, rather than all data in the table. To apply row-level filters during replication, use with .

--filter-path 'data-filter.json'

The JSON file should contain one or more entries in filters, each with a resource_specifier (schema and table) and a SQL expression expr. For example, the following example exports only rows from migration_schema.t1 where v > 100:

{
  "filters": [
    {
      "resource_specifier": {
        "schema": "migration_schema",
        "table": "t1"
      },
      "expr": "v > 100"
    }
  ]
}

expr is case-sensitive and must be valid in your source dialect. For example, when using Oracle as the source, quote all identifiers and escape embedded quotes:

{
  "filters": [
    {
      "resource_specifier": {
        "schema": "C##FETCHORACLEFILTERTEST",
        "table": "FILTERTBL"
      },
      "expr": "ABS(\"X\") > 10 AND CEIL(\"X\") < 100 AND FLOOR(\"X\") > 0 AND ROUND(\"X\", 2) < 100.00 AND TRUNC(\"X\", 0) > 0 AND MOD(\"X\", 2) = 0 AND FLOOR(\"X\" / 3) > 1"
    }
  ]
}

If the expression references columns that are not indexed, MOLT Fetch will emit a warning like: filter expression 'v > 100' contains column 'v' which is not indexed. This may lead to performance issues.

Shard tables for concurrent export

During the data export phase, MOLT Fetch can divide large tables into multiple shards for concurrent export. To control the number of shards created per table, use the flag. For example:

--export-concurrency=4

For performance considerations with concurrency settings, refer to .

Two sharding mechanisms are available:

Range-based sharding (default): Tables are divided based on numerical ranges found in primary key values. Only tables with , , or primary keys can use range-based sharding. Tables with other primary key data types export as a single shard.
Stats-based sharding (PostgreSQL only): Enable with for PostgreSQL 11+ sources. Tables are divided by analyzing the pg_stats view to create more evenly distributed shards, up to a maximum of 200 shards. Primary keys of any data type are supported.

Stats-based sharding requires that the user has SELECT permissions on source tables and on each table’s pg_stats view. The latter permission is automatically granted to users that can read the table. To optimize stats-based sharding, run ANALYZE on source tables before migration to ensure that table statistics are up-to-date and shards are evenly distributed. This requires MAINTAIN or OWNER permissions on the table. You can analyze specific primary key columns or the entire table. For example:

ANALYZE table_name(PK1, PK2, PK3);

ANALYZE table_name;

Large tables may take time to analyze, but ANALYZE can run in the background. You can run ANALYZE with MAINTAIN or OWNER privileges during migration preparation, then perform the actual migration with standard SELECT privileges.

Migration without running ANALYZE will still work, but shard distribution may be less even.

When using , monitor the log output for each table you want to migrate. If stats-based sharding is successful on a table, MOLT logs the following INFO message:

Stats based sharding enabled for table {table_name}

If stats-based sharding fails on a table, MOLT logs the following WARNING message and defaults to range-based sharding:

Warning: failed to shard table {table_name} using stats based sharding: {reason_for_failure}, falling back to non stats based sharding

The number of shards is dependent on the number of distinct values in the first primary key column of the table to be migrated. If this is different from the number of shards requested with , MOLT logs the following WARNING and continues with the migration:

number of shards formed: {num_shards_formed} is not equal to number of shards requested: {num_shards_requested} for table {table_name}

Because stats-based sharding analyzes the entire table, running with (refer to Selective data movement) will cause imbalanced shards to form.

Define intermediate storage

MOLT Fetch can move the source data to CockroachDB via cloud storage, a local file server, or directly without an intermediate store.

Bucket path

Only the path specified in is used. Query parameters, such as credentials, are ignored. To authenticate cloud storage, follow the steps in .

instructs MOLT Fetch to write intermediate files to a path within Google Cloud Storage, Amazon S3, or Azure Blob Storage to which you have the necessary permissions. Use additional , shown in the following examples, to specify authentication or region parameters as required for bucket access. Connect to a Google Cloud Storage bucket with and :

--bucket-path 'gs://migration/data/cockroach'
--assume-role 'user-test@cluster-ephemeral.iam.gserviceaccount.com'
--use-implicit-auth

Connect to an Amazon S3 bucket and explicitly specify the ap_south-1 region:

--bucket-path 's3://migration/data/cockroach'
--import-region 'ap-south-1'

When is set, IMPORT INTO must be used for data movement.

Connect to an Azure Blob Storage container with :

--bucket-path 'azure-blob://migration/data/cockroach'
--use-implicit-auth

Local path

instructs MOLT Fetch to write intermediate files to a path within a . specifies the address of the local file server. For example:

--local-path /migration/data/cockroach
--local-path-listen-addr 'localhost:3000'

In some cases, CockroachDB will not be able to use the local address specified by . This will depend on where CockroachDB is deployed, the runtime OS, and the source dialect. For example, if you are migrating to CockroachDB Cloud, such that the Cloud cluster is in a different physical location than the machine running molt fetch, then CockroachDB cannot reach an address such as localhost:3000. In these situations, use to specify an address for the local file server that is publicly accessible. For example:

--local-path /migration/data/cockroach
--local-path-listen-addr 'localhost:3000'
--local-path-crdb-access-addr '44.55.66.77:3000'

Cloud storage is often preferable to a local file server, which can require considerable disk space.

Direct copy

specifies that MOLT Fetch should use COPY FROM to move the source data directly to CockroachDB without an intermediate store:

Direct copy does not support compression or continuation.
The --use-copy flag is redundant with .

`IMPORT INTO` vs. `COPY FROM`

MOLT Fetch can use either or to load data into CockroachDB. By default, MOLT Fetch uses IMPORT INTO:

IMPORT INTO achieves the highest throughput, but to achieve its import speed. Tables are taken back online once an completes successfully. See .
IMPORT INTO supports compression using the flag, which reduces the amount of storage used.

configures MOLT Fetch to use COPY FROM:

COPY FROM enables your tables to remain online and accessible. However, it is slower than using .
COPY FROM does not support compression.

COPY FROM is also used for direct copy.

Handle target tables

defines how MOLT Fetch loads data on the CockroachDB tables that match the selection. To load the data without changing the existing data in the tables, use none:

--table-handling none

To tables before loading the data, use truncate-if-exists:

--table-handling truncate-if-exists

To drop existing tables and create new tables before loading the data, use drop-on-target-and-recreate:

--table-handling drop-on-target-and-recreate

When using the drop-on-target-and-recreate option, MOLT Fetch creates a new CockroachDB table to load the source data if one does not already exist. To guide the automatic schema creation, you can explicitly map source types to CockroachDB types. drop-on-target-and-recreate does not create indexes or constraints other than and .

Mismatch handling

If either none or truncate-if-exists is set, molt fetch loads data into the existing tables on the target CockroachDB database. If the target schema mismatches the source schema, molt fetch will exit early in certain cases, and will need to be re-run from the beginning. For details, refer to .

This does not apply when drop-on-target-and-recreate is specified, since this option automatically creates a compatible CockroachDB schema.

Skip primary key matching

removes the for data load. When this flag is set:

The data load proceeds even if the source or target table lacks a primary key, or if their primary key columns do not match.
Table sharding is disabled. Each table is exported in a single batch within one shard, bypassing and . As a result, memory usage and execution time may increase due to full table scans.
If the source table contains duplicate rows but the target has or constraints, duplicate rows are deduplicated during import.

When is set, all tables are treated as if they lack a primary key, and are thus exported in a single unsharded batch. To avoid performance issues, use this flag with to target only tables without a primary key. For example:

molt fetch \
  --mode data-load \
  --table-filter 'nopktbl' \
  --skip-pk-check

Example log output when is enabled:

{"level":"info","message":"sharding is skipped for table public.nopktbl - flag skip-pk-check is specified and thus no PK for source table is specified"}

Type mapping

If drop-on-target-and-recreate is set, MOLT Fetch automatically creates a CockroachDB schema that is compatible with the source data. The column types are determined as follows:

PostgreSQL types are mapped to existing CockroachDB that have the same .

The following MySQL types are mapped to corresponding CockroachDB types:

MySQL type	CockroachDB type	Notes
`CHAR`, `CHARACTER`, `VARCHAR`, `NCHAR`, `NVARCHAR`		Varying-length string; raises warning if BYTE semantics used
`TINYTEXT`, `TEXT`, `MEDIUMTEXT`, `LONGTEXT`		Unlimited-length string
`GEOMETRY`		Spatial type (PostGIS-style)
`LINESTRING`		Spatial type (PostGIS-style)
`POINT`		Spatial type (PostGIS-style)
`POLYGON`		Spatial type (PostGIS-style)
`MULTIPOINT`		Spatial type (PostGIS-style)
`MULTILINESTRING`		Spatial type (PostGIS-style)
`MULTIPOLYGON`		Spatial type (PostGIS-style)
`GEOMETRYCOLLECTION`, `GEOMCOLLECTION`		Spatial type (PostGIS-style)
`JSON`		CRDB’s native JSON format
`TINYINT`, `INT1`		2-byte integer
`BLOB`		Binary data
`SMALLINT`, `INT2`		2-byte integer
`MEDIUMINT`, `INT`, `INTEGER`, `INT4`		4-byte integer
`BIGINT`, `INT8`		8-byte integer
`FLOAT`		32-bit float
`DOUBLE`		64-bit float
`DECIMAL`, `NUMERIC`, `REAL`		Validates scale ≤ precision; warns if precision > 19
`BINARY`, `VARBINARY`		Binary data
`DATETIME`		Date and time (no time zone)
`TIMESTAMP`		Date and time with time zone
`TIME`		Time of day (no date)
`BIT`		Variable-length bit array
`DATE`		Date only (no time)
`TINYBLOB`, `MEDIUMBLOB`, `LONGBLOB`		Binary data
`BOOL`, `BOOLEAN`		Boolean

The following Oracle types are mapped to CockroachDB types:

Oracle type(s)	CockroachDB type	Notes
`NCHAR`, `CHAR`, `CHARACTER`	(n) or	Fixed-length character; falls back to unbounded if length not specified
`VARCHAR`, `VARCHAR2`, `NVARCHAR2`	(n) or	Varying-length string; raises warning if BYTE semantics used
`STRING`		Unlimited-length string
`SMALLINT`		2-byte integer
`INTEGER`, `INT`, `SIMPLE_INTEGER`		4-byte integer
`LONG`		8-byte integer
`FLOAT`, `BINARY_FLOAT`, `REAL`		32-bit float
`DOUBLE`, `BINARY_DOUBLE`		64-bit float
`DEC`, `NUMBER`, `DECIMAL`, `NUMERIC`	(p, s) or	Validates scale ≤ precision; warns if precision > 19
`DATE`		Date only (no time)
`BLOB`, `RAW`, `LONG RAW`		Binary data
`JSON`		CRDB’s native JSON format
`CLOB`, `NCLOB`		Treated as large text
`BOOLEAN`		Boolean
`TIMESTAMP`	or	If `WITH TIME ZONE` → `TIMESTAMPTZ`, else `TIMESTAMP`
`ROWID`, `UROWID`		Treated as opaque identifier
`SDO_GEOMETRY`		Spatial type (PostGIS-style)
`XMLTYPE`		Stored as text

To override the default mappings for automatic schema creation, you can map source to target CockroachDB types explicitly. These are defined in the JSON file indicated by the flag. The allowable custom mappings are valid CockroachDB aliases, casts, and the following mappings specific to MOLT Fetch and :
- <>
- <>
- <>
- <>
- <>
- <>
- <>

specifies the path to the JSON file containing the explicit type mappings. For example:

--type-map-file 'type-mappings.json'

The following JSON example defines two type mappings:

 [
  {
    "table": "public.t1",
    "column_type_map": [
      {
        "column": "*",
        "source_type": "int",
        "crdb_type": "INT2"
      },
      {
        "column": "name",
        "source_type": "varbit",
        "crdb_type": "string"
      }
    ]
  }
]

table specifies the table that will use the custom type mappings in column_type_map. The value is written as {schema}.{table}.
column specifies the column that will use the custom type mapping. If * is specified, then all columns in the table with the matching source_type are converted.
source_type specifies the source type to be mapped.
crdb_type specifies the target CockroachDB to be mapped.

Define transformations

You can define transformation rules to be performed on the target database during the fetch task. These can be used to:

Map from source to target.
Map partitioned tables to a single target table.
Rename tables on the target database.
Rename database schemas.

Transformation rules are defined in the JSON file indicated by the flag. For example:

--transformations-file 'transformation-rules.json'

Transformation rules example

The following JSON example defines three transformation rules: rule 1 maps computed columns, rule 2 renames tables, and rule 3 renames schemas.

{
  "transforms": [
    {
      "id": 1,
      "resource_specifier": {
        "schema": ".*",
        "table": ".*"
      },
      "column_exclusion_opts": {
        "add_computed_def": true,
        "column": "^age$"
      }
    },
    {
      "id": 2,
      "resource_specifier": {
        "schema": "public",
        "table": "charges_part.*"
      },
      "table_rename_opts": {
        "value": "charges"
      }
    },
    {
      "id": 3,
      "resource_specifier": {
        "schema": "previous_schema"
      },
      "schema_rename_opts": {
        "value": "new_schema"
      }
    }
  ]
}

Column exclusions and computed columns

resource_specifier: Identifies which schemas and tables to transform.
- schema: POSIX regex matching source schemas.
- table: POSIX regex matching source tables.
column_exclusion_opts: Exclude columns or map them as computed columns.
- column: POSIX regex matching source columns to exclude.
- add_computed_def: When true, map matching columns as on target tables using and the source column definition. All matching columns must be computed columns on the source.
  Columns matching column are not moved to CockroachDB if add_computed_def is false (default) or if matching columns are not computed columns.

Example rule 1 maps all source age columns to on CockroachDB. This assumes that all matching age columns are defined as computed columns on the source:

{
  "id": 1,
  "resource_specifier": {
    "schema": ".*",
    "table": ".*"
  },
  "column_exclusion_opts": {
    "add_computed_def": true,
    "column": "^age$"
  }
},

Table renaming

resource_specifier: Identifies which schemas and tables to transform.
- schema: POSIX regex matching source schemas.
- table: POSIX regex matching source tables.
table_rename_opts: Rename tables on the target.
- value: Target table name. For a single matching source table, renames it to this value. For multiple matches (n-to-1), consolidates matching partitioned tables with the same table definition into a single table with this name. For n-to-1 mappings:
  - Use --use-copy or --direct-copy for data movement.
  - Manually create the target table. Do not use --table-handling drop-on-target-and-recreate.

Example rule 2 maps all table names with prefix charges_part to a single charges table on CockroachDB (an n-to-1 mapping). This assumes that all matching charges_part.* tables have the same table definition:

{
  "id": 2,
  "resource_specifier": {
    "schema": "public",
    "table": "charges_part.*"
  },
  "table_rename_opts": {
    "value": "charges"
  }
},

Schema renaming

resource_specifier: Identifies which schemas and tables to transform.
- schema: POSIX regex matching source schemas.
- table: POSIX regex matching source tables.
schema_rename_opts: Rename database schemas on the target.
- value: Target schema name. For example, previous_schema.table1 becomes new_schema.table1.

Example rule 3 renames the database schema previous_schema to new_schema on CockroachDB:

{
  "id": 3,
  "resource_specifier": {
    "schema": "previous_schema"
  },
  "schema_rename_opts": {
    "value": "new_schema"
  }
}

General notes

Each rule is applied in the order it is defined. If two rules overlap, the later rule will override the earlier rule. To verify that the logging shows that the computed columns are being created: When running molt fetch, set debug and look for ALTER TABLE ... ADD COLUMN statements with the STORED or VIRTUAL keywords in the log output:

{"level":"debug","time":"2024-07-22T12:01:51-04:00","message":"running: ALTER TABLE IF EXISTS public.computed ADD COLUMN computed_col INT8 NOT NULL AS ((col1 + col2)) STORED"}

After running molt fetch, issue a SHOW CREATE TABLE statement on CockroachDB:

SHOW CREATE TABLE computed;

  table_name |                         create_statement
-------------+-------------------------------------------------------------------
  computed   | CREATE TABLE public.computed (
  ...
             |     computed_col INT8 NOT NULL AS (col1 + col2) STORED
             | )

Continue MOLT Fetch after interruption

If MOLT Fetch fails while loading data into CockroachDB from intermediate files, it exits with an error message, fetch ID, and continuation token for each table that failed to load on the target database. You can use this information to continue the task from the continuation point where it was interrupted. Continuation is only possible under the following conditions:

All data has been exported from the source database into intermediate files on cloud or local storage.
The initial load of source data into the target CockroachDB database is incomplete.

Only one fetch ID and set of continuation tokens, each token corresponding to a table, are active at any time. See List active continuation tokens.

To retry all data starting from the continuation point, reissue the molt fetch command and include the .

--fetch-id d44762e5-6f70-43f8-8e15-58b4de10a007

To retry a specific table that failed, include both and . The latter flag specifies a token string that corresponds to a specific table on the source database. A continuation token is written in the molt fetch output for each failed table. If the fetch task encounters a subsequent error, it generates a new token for each failed table. See List active continuation tokens.

This will retry only the table that corresponds to the continuation token. If the fetch task succeeds, there may still be source data that is not yet loaded into CockroachDB.

--fetch-id d44762e5-6f70-43f8-8e15-58b4de10a007
--continuation-token 011762e5-6f70-43f8-8e15-58b4de10a007

To retry all data starting from a specific file, include both and . The latter flag specifies the filename of an intermediate file in cloud or local storage. All filenames are prepended with part_ and have the .csv.gz or .csv extension, depending on compression type (gzip by default). For example:

--fetch-id d44762e5-6f70-43f8-8e15-58b4de10a007
--continuation-file-name part_00000003.csv.gz

Continuation is not possible when using direct copy.

List active continuation tokens

To view all active continuation tokens, issue a molt fetch tokens list command along with , which specifies the for the target CockroachDB database. For example:

molt fetch tokens list \
--conn-string 'postgres://root@localhost:26257/defaultdb?sslmode=verify-full'

+--------------------------------------+--------------------------------------+------------------+----------------------+
|                  ID                  |               FETCH ID               |    TABLE NAME    |      FILE NAME       |
+--------------------------------------+--------------------------------------+------------------+----------------------+
| f6f0284c-d9c1-43c9-8fde-af609d0dbd82 | 66443597-5689-4df3-a7b9-9fc5e27180eb | public.employees | part_00000001.csv.gz |
+--------------------------------------+--------------------------------------+------------------+----------------------+
Continuation Tokens.

Enable replication

A change data capture (CDC) cursor is written to the MOLT Fetch output as cdc_cursor at the beginning and end of the fetch task. For MySQL:

{"level":"info","type":"summary","fetch_id":"735a4fe0-c478-4de7-a342-cfa9738783dc","num_tables":1,"tables":["public.employees"],"skipped_unmigratable_tables":[],"cdc_cursor":"b7f9e0fa-2753-1e1f-5d9b-2402ac810003:3-21","net_duration_ms":4879.890041,"net_duration":"000h 00m 04s","time":"2024-03-18T12:37:02-04:00","message":"fetch complete"}

For Oracle:

{"level":"info","type":"summary","fetch_id":"735a4fe0-c478-4de7-a342-cfa9738783dc","num_tables":3,"tables":["migration_schema.employees"],"skipped_unmigratable_tables":[],"cdc_cursor":"backfillFromSCN=26685444,scn=26685786","net_duration_ms":6752.847625,"net_duration":"000h 00m 06s","time":"2024-03-18T12:37:02-04:00","message":"fetch complete"}

This cdc_cursor value is also included in the output of a fetch task from a PostgreSQL source. However, in the case of a PostgreSQL source, you can instead enable replication with the and flags, which must be defined. Use the cdc_cursor value as the checkpoint for MySQL or Oracle replication with MOLT Replicator. Use the value as the checkpoint for PostgreSQL replication with MOLT Replicator. Refer to in the MOLT Replicator documentation. You can also use the cdc_cursor value with an external change data capture (CDC) tool to continuously replicate subsequent changes from the source database to CockroachDB.

Docker usage

Authentication

When using MOLT Fetch with cloud storage, it is necessary to specify volumes and environment variables, as described in the following sections for Google Cloud Storage and Amazon S3. No additional configuration is needed when running MOLT Fetch with a local file server or in direct copy mode:

docker run -it cockroachdb/molt fetch ...

For more information on docker run, see the Docker documentation.

Google Cloud Storage

If you are using Google Cloud Storage for cloud storage: Volume map the application_default_credentials.json file into the container, and set the GOOGLE_APPLICATION_CREDENTIALS environment variable to point to this file.

docker run \
  -v ~/.config/gcloud/application_default_credentials.json:/gcp/creds.json:ro \
  -e GOOGLE_APPLICATION_CREDENTIALS=/gcp/creds.json \
  -it \
  cockroachdb/molt fetch ...

In case the previous authentication method fails, you can volume map the entire Google Cloud configuration directory into the container. In addition to setting the GOOGLE_APPLICATION_CREDENTIALS environment variable, set CLOUDSDK_CONFIG to point to the configuration directory:

docker run \
  -v ~/.config/gcloud:/gcp/config:ro \
  -e CLOUDSDK_CONFIG=/gcp/config \
  -e GOOGLE_APPLICATION_CREDENTIALS=/gcp/config/application_default_credentials.json \
  -it \
  cockroachdb/molt fetch ...

For details on Google Cloud Storage authentication, see Application Default Credentials.

Amazon S3

If you are using Amazon S3 for cloud storage: Volume map the host’s ~/.aws directory to the /root/.aws directory inside the container, and set the required AWS_REGION, AWS_SECRET_ACCESS_KEY, and AWS_ACCESS_KEY_ID environment variables:

docker run \
  -v ~/.aws:/root/.aws \
  -e AWS_REGION=your-region \
  -e AWS_SECRET_ACCESS_KEY=your-secret-access-key \
  -e AWS_ACCESS_KEY_ID=your-access-key-id \
  -it \
  cockroachdb/molt fetch ...

Local connection strings

When testing locally, specify the host as follows:

For macOS, use host.docker.internal. For example:

--source 'postgres://postgres:postgres@host.docker.internal:5432/migration_db?sslmode=disable'
--target "postgres://root@host.docker.internal:26257/defaultdb?sslmode=disable"

For Linux and Windows, use 172.17.0.1. For example:

--source 'postgres://postgres:postgres@172.17.0.1:5432/migration_db?sslmode=disable'
--target "postgres://root@172.17.0.1:26257/defaultdb?sslmode=disable"

Common uses

Bulk data load

When migrating data to CockroachDB in a bulk load (without utilizing to minimize system downtime), run the molt fetch command with the required flags, as shown below: Specify the source and target database connections. For connection string formats, refer to Source and target databases.

PostgreSQL
MySQL
Oracle

--source $SOURCE
--target $TARGET

Specify how to move data to CockroachDB. Use cloud storage for intermediate file storage:

--bucket-path 's3://bucket/path'

Alternatively, use a local file server for intermediate storage:

--local-path /migration/data/cockroach
--local-path-listen-addr 'localhost:3000'

Alternatively, use direct copy to move data directly without intermediate storage:

--direct-copy

Optionally, filter the source data to migrate. By default, all schemas and tables are migrated. For details, refer to Schema and table selection.

--schema-filter 'migration_schema'
--table-filter '.*user.*'

--source $SOURCE
--target $TARGET

Specify how to move data to CockroachDB. Use cloud storage for intermediate file storage:

--bucket-path 's3://bucket/path'

Alternatively, use a local file server for intermediate storage:

--local-path /migration/data/cockroach
--local-path-listen-addr 'localhost:3000'

Alternatively, use direct copy to move data directly without intermediate storage:

--direct-copy

Optionally, filter the source data to migrate. By default, all schemas and tables are migrated. For details, refer to Schema and table selection.For MySQL sources, omit because MySQL tables belong directly to the database specified in the connection string, not to a separate schema. If needed, use to select specific tables:

--table-filter '.*user.*'

For Oracle Multitenant (CDB/PDB) sources, also include to specify the container database (CDB) connection string.

--source $SOURCE
--source-cdb $SOURCE_CDB
--target $TARGET

Specify how to move data to CockroachDB. Use cloud storage for intermediate file storage:

--bucket-path 's3://bucket/path'

Alternatively, use a local file server for intermediate storage:

--local-path /migration/data/cockroach
--local-path-listen-addr 'localhost:3000'

Alternatively, use direct copy to move data directly without intermediate storage:

--direct-copy

Optionally, filter the source data to migrate. By default, all schemas and tables are migrated. For details, refer to Schema and table selection.For Oracle sources, is case-insensitive. You can use either lowercase or uppercase:

--schema-filter 'migration_schema'
--table-filter '.*user.*'

Specify how to handle target tables. By default, is set to none, which loads data without changing existing data in the tables. For details, refer to Target table handling:

--table-handling truncate-if-exists

When performing a bulk load without subsequent replication, use to skip querying for replication checkpoints (such as pg_current_wal_insert_lsn() on PostgreSQL, gtid_executed on MySQL, and CURRENT_SCN on Oracle). This is appropriate when:

Performing a one-time data migration with no plan to replicate ongoing changes.
Exporting data from a read replica where replication checkpoints are unavailable.

--ignore-replication-check

At minimum, the molt fetch command should include the source, target, data path, and flags:

molt fetch \
--source $SOURCE \
--target $TARGET \
--bucket-path 's3://bucket/path' \
--ignore-replication-check

For detailed walkthroughs of migrations that use molt fetch in this way, refer to these common migration approaches:

Initial bulk load (before replication)

In a migration that utilizes , perform an initial data load before . Run the molt fetch command without , as shown below: The workflow is the same as Bulk data load, except:

Exclude . MOLT Fetch will query and record replication checkpoints.
After the data load completes, check the CDC cursor in the output for the checkpoint value to use with MOLT Replicator.

PostgreSQL
MySQL
Oracle

You must include and to automatically create the publication and replication slot during the data load.

At minimum, the molt fetch command should include the source, target, and data path flags:

molt fetch \
--source $SOURCE \
--target $TARGET \
--bucket-path 's3://bucket/path' \
--pglogical-replication-slot-name molt_slot \
--pglogical-publication-and-slot-drop-and-recreate

The output will include a cdc_cursor value at the end of the fetch task:

{"level":"info","type":"summary","fetch_id":"735a4fe0-c478-4de7-a342-cfa9738783dc","num_tables":1,"tables":["public.employees"],"skipped_unmigratable_tables":[],"cdc_cursor":"b7f9e0fa-2753-1e1f-5d9b-2402ac810003:3-21","net_duration_ms":4879.890041,"net_duration":"000h 00m 04s","time":"2024-03-18T12:37:02-04:00","message":"fetch complete"}

At minimum, the molt fetch command should include the source, target, and data path flags:

molt fetch \
--source $SOURCE \
--target $TARGET \
--bucket-path 's3://bucket/path'

The output will include a cdc_cursor value at the end of the fetch task:

{"level":"info","type":"summary","fetch_id":"735a4fe0-c478-4de7-a342-cfa9738783dc","num_tables":1,"tables":["public.employees"],"skipped_unmigratable_tables":[],"cdc_cursor":"b7f9e0fa-2753-1e1f-5d9b-2402ac810003:3-21","net_duration_ms":4879.890041,"net_duration":"000h 00m 04s","time":"2024-03-18T12:37:02-04:00","message":"fetch complete"}

Use this cdc_cursor value when starting MOLT Replicator to ensure replication begins from the correct position.

At minimum, the molt fetch command should include the source, target, and data path flags:

molt fetch \
--source $SOURCE \
--source-cdb $SOURCE_CDB \
--target $TARGET \
--bucket-path 's3://bucket/path'

The output will include a cdc_cursor value at the end of the fetch task:

{"level":"info","type":"summary","fetch_id":"735a4fe0-c478-4de7-a342-cfa9738783dc","num_tables":1,"tables":["public.employees"],"skipped_unmigratable_tables":[],"cdc_cursor":"b7f9e0fa-2753-1e1f-5d9b-2402ac810003:3-21","net_duration_ms":4879.890041,"net_duration":"000h 00m 04s","time":"2024-03-18T12:37:02-04:00","message":"fetch complete"}

Use this cdc_cursor value when starting MOLT Replicator to ensure replication begins from the correct position.

For detailed walkthroughs of migrations that use molt fetch in this way, refer to these common migration approaches:

Known limitations

Only tables with types of , , or can be sharded with .
GEOMETRY and GEOGRAPHY types are not supported.

The following limitation is specific to PostgreSQL sources:

OID LOB types in PostgreSQL are not supported, although similar types like BYTEA are supported.

The following limitations are specific to Oracle sources:

Migrations must be performed from a single Oracle schema. You must include so that MOLT Fetch only loads data from the specified schema. Refer to .
- Specifying is also strongly recommended to ensure that only necessary tables are migrated from the Oracle schema.
Oracle advises against LONG RAW columns and recommends converting them to BLOB. LONG RAW can only store binary values up to 2GB, and only one LONG RAW column per table is supported.

​Prerequisites

​Supported databases

​Database configuration

​User permissions

​Target cluster session variable

​How it works

​Data export phase

​Data import phase

​Run MOLT Fetch

​Specify source and target databases

​Define fetch mode

​Select data to migrate

​Schema and table selection

​Row-level filtering

​Shard tables for concurrent export

​Define intermediate storage

​Bucket path

​Local path

​Direct copy

​IMPORT INTO vs. COPY FROM

​Handle target tables

​Mismatch handling

​Skip primary key matching

​Type mapping

​Define transformations

​Transformation rules example

​Column exclusions and computed columns

​Table renaming

​Schema renaming

​General notes

​Continue MOLT Fetch after interruption

​List active continuation tokens

​Enable replication

​Docker usage

​Authentication

​Google Cloud Storage

​Amazon S3

​Local connection strings

​Common uses

​Bulk data load

​Initial bulk load (before replication)

​Known limitations

​See also

Prerequisites

Supported databases

Database configuration

User permissions

Target cluster session variable

How it works

Data export phase

Data import phase

Run MOLT Fetch

Specify source and target databases

Define fetch mode

Select data to migrate

Schema and table selection

Row-level filtering

Shard tables for concurrent export

Define intermediate storage

Bucket path

Local path

Direct copy

`IMPORT INTO` vs. `COPY FROM`

Handle target tables

Mismatch handling

Skip primary key matching

Type mapping

Define transformations

Transformation rules example

Column exclusions and computed columns

Table renaming

Schema renaming

General notes

Continue MOLT Fetch after interruption

List active continuation tokens

Enable replication

Docker usage

Authentication

Google Cloud Storage

Amazon S3

Local connection strings

Common uses

Bulk data load

Initial bulk load (before replication)

Known limitations

See also
