Deploy CockroachDB on Red Hat OpenShift

This page shows you how to start and stop a secure 3-node CockroachDB cluster on the Red Hat OpenShift platform, using the Public operator.

New deployments of CockroachDB on Kubernetes are recommended to use the newer, fully-featured CockroachDB operator that’s easier to deploy and supports scaling of multi-region clusters. To migrate an existing deployment to use the CockroachDB operator, read the and migration guides.

New deployments of CockroachDB on Kubernetes are recommended to use the newer, fully-featured CockroachDB operator that’s easier to deploy and supports scaling of multi-region clusters. To migrate an existing deployment to use the CockroachDB operator, read the and migration guides.

Before you begin

You must have the following set up before proceeding with this tutorial:

• A running OpenShift cluster

This article assumes you have already installed the OpenShift Container Platform as your Kubernetes cluster. For details on this, see the OpenShift documentation.

Step 1. Create a CockroachDB namespace

1. Create a cockroachdb namespace. You will create the CockroachDB cluster in this namespace:

oc runs kubectl commands on OpenShift clusters, using the same syntax.

oc create namespace cockroachdb

namespace/cockroachdb created

1. Set cockroachdb as the default namespace:

   oc config set-context --current --namespace=cockroachdb

   Context "admin" modified.


   Validate that this was successful:

   oc config view --minify | grep namespace:

   namespace: cockroachdb


   This lets you issue oc commands without having to specify the namespace each time.

Step 2. Install the Public operator

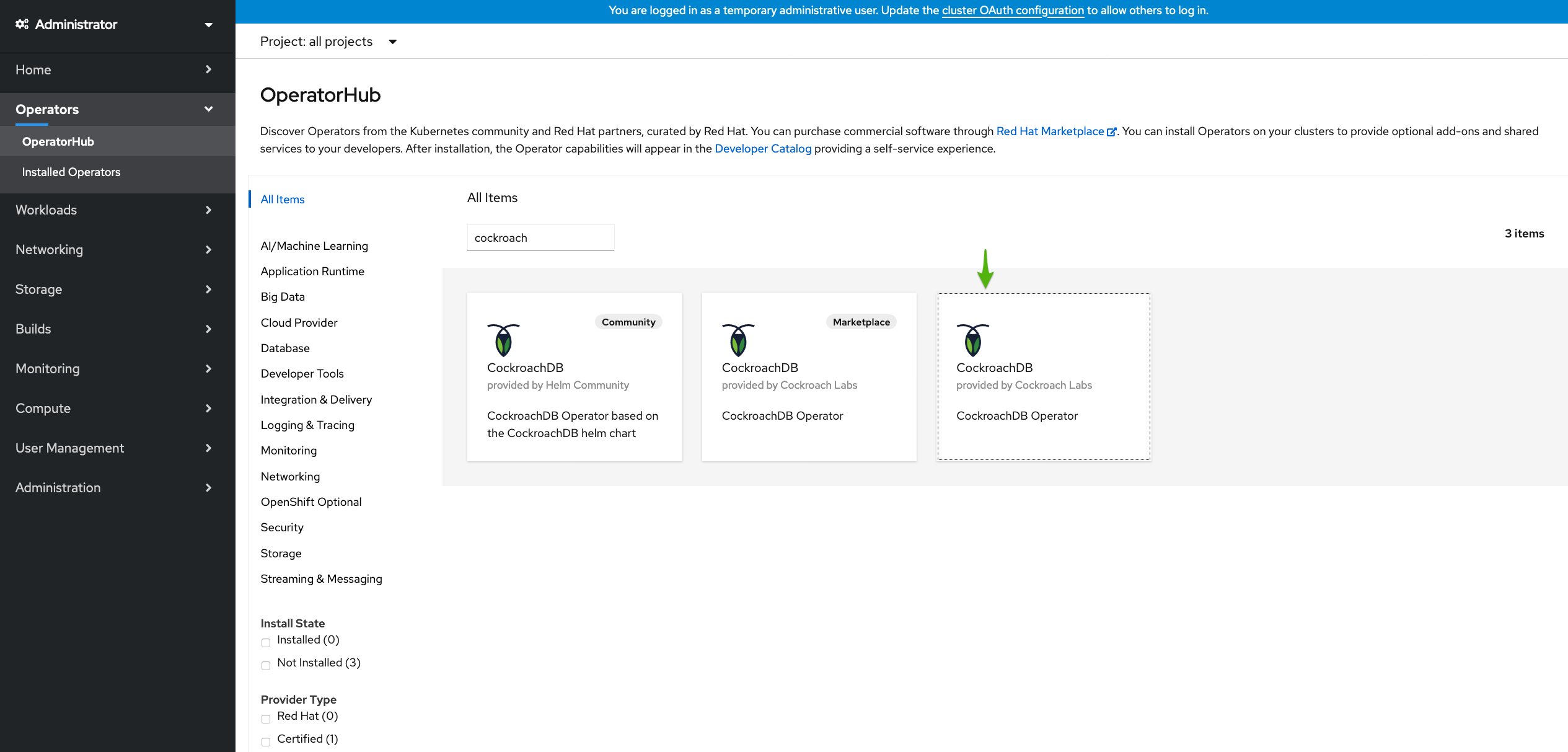

1. Navigate to your OpenShift web console and click OperatorHub.

2. Enter “cockroach” in the search box. There are two tiles called CockroachDB Operator. Find the tile without the Marketplace label (which requires a subscription).



   Click the CockroachDB Operator tile and then Install.

3. On the Install Operator page, select cockroachdb in the Installed Namespace dropdown and click Install.

4. Confirm that the operator is running:

   $ oc get pods

   NAME                                  READY   STATUS    RESTARTS   AGE
   cockroach-operator-65c4f6df45-h5r5n   1/1     Running   0          51s


Step 3. Start CockroachDB

1. When the operator is ready, click View Operator to navigate to the Installed Operators page.

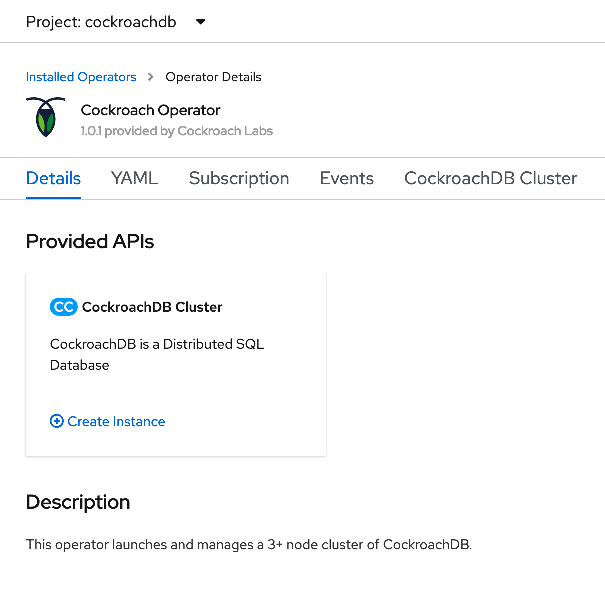

2. In the CockroachDB Operator tile, click Create instance.



3. Make sure CockroachDB Version is set to a valid CockroachDB version. For a list of compatible image names, see spec.containers.env in the pulic operator manifest on GitHub.

4. This will open the Create CrdbCluster page. By default, this deploys a 3-node secure cluster. Leave the other fields unchanged and click Create.

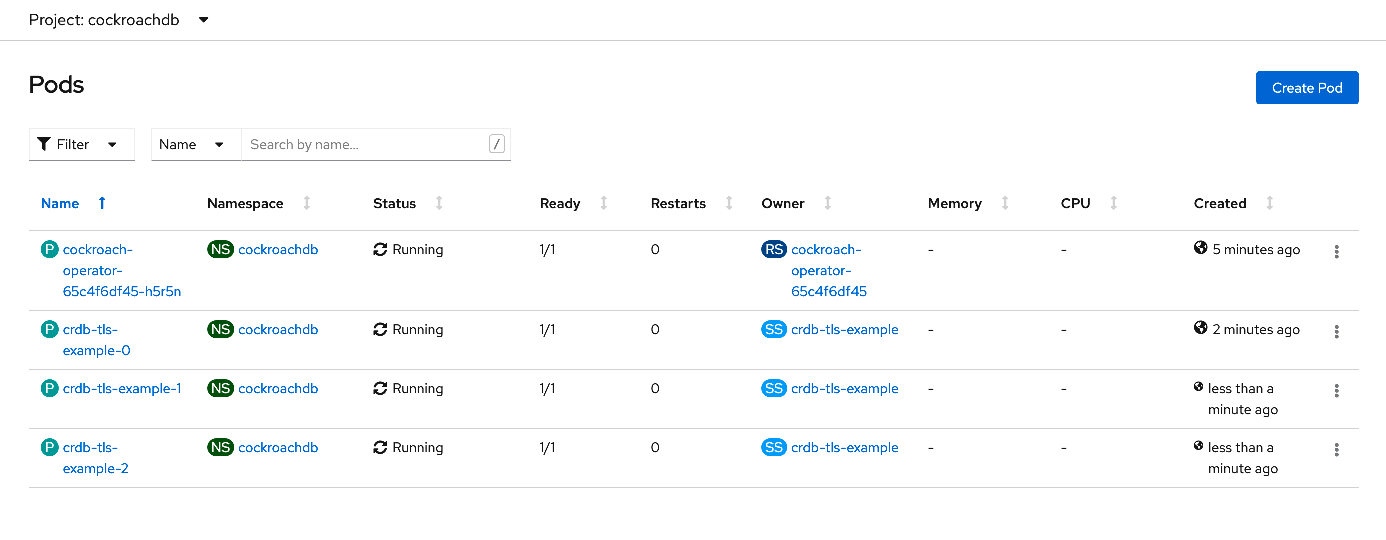

5. Navigate to Workloads > Pods and observe the pods being created:



6. You can also use the command line to view the pods:

   oc get pods

   NAME                                  READY   STATUS    RESTARTS   AGE
   cockroach-operator-65c4f6df45-h5r5n   1/1     Running   0          6m11s
   crdb-tls-example-0                    1/1     Running   0          3m15s
   crdb-tls-example-1                    1/1     Running   0          103s
   crdb-tls-example-2                    1/1     Running   0          89s


Step 4. Create a secure client pod

To use the CockroachDB SQL client, first launch a secure pod running the cockroach binary.

This can be defined with the following YAML, which mounts the operator’s generated certificates:

spec.containers.image should match the Image value that is displayed under the Containers section on the Pods page when you select a CockroachDB pod. Be sure to select a CockroachDB pod and not the operator pod.

Note that OpenShift may display the image SHA instead of the tag. In this case, you should use the SHA for spec.containers.image.

apiVersion: v1
kind: Pod
metadata:
  name: crdb-client-secure
  labels:
    app.kubernetes.io/component: database
    app.kubernetes.io/instance: crdb-tls-example
    app.kubernetes.io/name: cockroachdb
spec:
  serviceAccountName: cockroach-operator-sa
  containers:
  - name: crdb-client-secure
    image: registry.connect.redhat.com/cockroachdb/cockroach:v20.2.8
    imagePullPolicy: IfNotPresent
    volumeMounts:
    - name: client-certs
      mountPath: /cockroach/cockroach-certs/
    command:
    - sleep
    - "2147483648" # 2^31
  terminationGracePeriodSeconds: 0
  volumes:
  - name: client-certs
    projected:
        sources:
          - secret:
              name: crdb-tls-example-node
              items:
                - key: ca.crt
                  path: ca.crt
          - secret:
              name: crdb-tls-example-root
              items:
                - key: tls.crt
                  path: client.root.crt
                - key: tls.key
                  path: client.root.key
        defaultMode: 256

1. On the Pods page, click Create Pod and replace the existing YAML with the above manifest.

2. Click Create. Return to the Pods page and check that the client pod crdb-client-secure is running. This is also visible on the command-line:

   oc get pods

   NAME                                  READY   STATUS    RESTARTS   AGE
   cockroach-operator-65c4f6df45-h5r5n   1/1     Running   0          6m11s
   crdb-client-secure                    1/1     Running   0          14m
   crdb-tls-example-0                    1/1     Running   0          3m15s
   crdb-tls-example-1                    1/1     Running   0          103s
   crdb-tls-example-2                    1/1     Running   0          89s


Step 5. Use the CockroachDB SQL client

1. Start the CockroachDB from the client pod:

   oc exec -it crdb-client-secure -- ./cockroach sql --certs-dir=/cockroach/cockroach-certs/ --host=crdb-tls-example-public

   #
   # Welcome to the CockroachDB SQL shell.
   # All statements must be terminated by a semicolon.
   # To exit, type: \q.
   #
   # Server version: CockroachDB CCL v20.2.8 	(x86_64-unknown-linux-gnu, built 2021/04/23 13:54:57, go1.13.14) (same version as client)
   # Cluster ID: 0813c343-c86b-4be8-9ad0-477cdb5db749
   #
   # Enter \? for a brief introduction.
   #
   root@crdb-tls-example-public:26257/defaultdb>


   Now you can run SQL commands against the cluster.

2. Run some basic :

   > CREATE DATABASE bank;

   > CREATE TABLE bank.accounts (id INT PRIMARY KEY, balance DECIMAL);

   > INSERT INTO bank.accounts VALUES (1, 1000.50);

   > SELECT * FROM bank.accounts;

     id | balance
   +----+---------+
      1 | 1000.50
   (1 row)


3. :

   > CREATE USER roach WITH PASSWORD 'Q7gc8rEdS';


   You will need this username and password to access the DB Console later.

4. Exit the SQL shell and pod:

   > \q


Note: If you cannot access the SQL client, this may be related to your --certs-dir or --host flags.

1. Shell into the client pod and check for the necessary certs in the --certs-dir directory:

You can also access the client pod by selecting it on the Pods page and clicking Terminal.

oc exec -it crdb-client-secure sh

# cd /cockroach/cockroach-certs
# ls

ca.crt           client.root.key
client.root.crt

1. Check the name of the public service to use with the --host flag:

   oc get services

   NAME                      TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)              AGE
   crdb-tls-example          ClusterIP   None             <none>        26257/TCP,8080/TCP   14m
   crdb-tls-example-public   ClusterIP   172.25.180.197   <none>        26257/TCP,8080/TCP   14m


Step 6. Access the DB Console

To access the CockroachDB cluster’s :

1. On secure clusters, can only be accessed by admin users.

   Start the CockroachDB from the client pod:

   oc exec -it crdb-client-secure -- ./cockroach sql --certs-dir=/cockroach/cockroach-certs/ --host=crdb-tls-example-public


2. Assign roach to the admin role (you only need to do this once):

   > GRANT admin TO roach;


3. Exit the SQL shell and pod:

   > \q


4. In a new terminal window, port-forward from your local machine to the crdb-tls-example-public service:

   oc port-forward service/crdb-tls-example-public 8080

   Forwarding from [::1]:8080 -> 8080


5. Go to https://localhost:8080 and log in with the username and password you created earlier.

If you are using Google Chrome, and you are getting an error about not being able to reach localhost because its certificate has been revoked, go to chrome://flags/#allow-insecure-localhost, enable “Allow invalid certificates for resources loaded from localhost”, and then restart the browser. Enabling this Chrome feature degrades security for all sites running on localhost, not just CockroachDB’s DB Console, so be sure to enable the feature only temporarily.

Step 7. Run a sample workload

To run a sample :

1. Use the secure client pod to load the movr schema on one of the CockroachDB pods:

   oc exec -it crdb-client-secure -- ./cockroach workload init movr 'postgresql://[e-mail]:26257?sslcert=%2Fcockroach%2Fcockroach-certs%2Fclient.root.crt&sslkey=%2Fcockroach%2Fcockroach-certs%2Fclient.root.key&sslmode=verify-full&sslrootcert=%2Fcockroach%2Fcockroach-certs%2Fca.crt'


2. Initialize and run the workload for 3 minutes:

   oc exec -it crdb-client-secure -- ./cockroach workload run movr --duration=3m --tolerate-errors --max-rate=20 --concurrency=1 --display-every=10s 'postgresql://[e-mail]:26257?sslcert=%2Fcockroach%2Fcockroach-certs%2Fclient.root.crt&sslkey=%2Fcockroach%2Fcockroach-certs%2Fclient.root.key&sslmode=verify-full&sslrootcert=%2Fcockroach%2Fcockroach-certs%2Fca.crt'

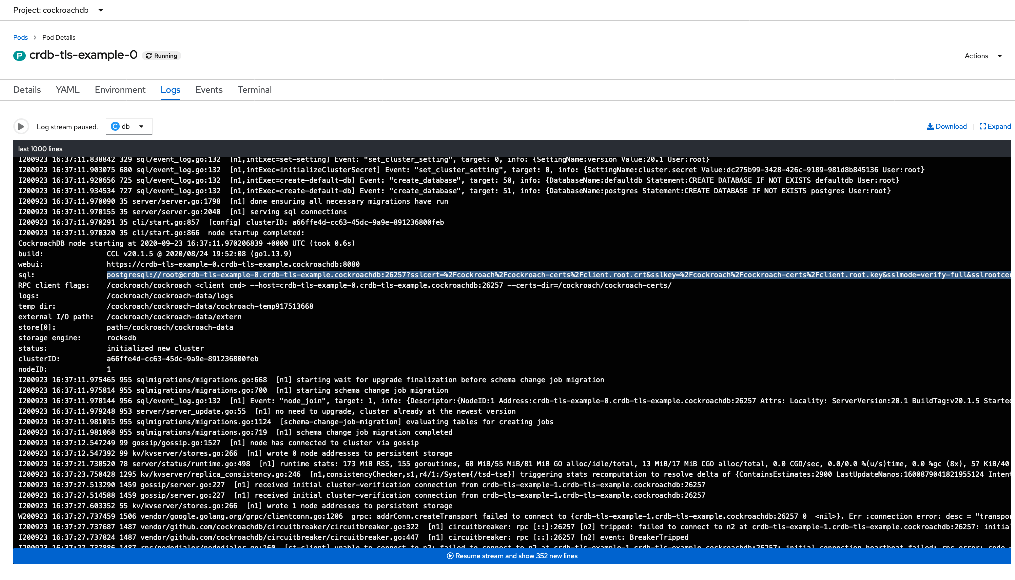

3. Select one of the CockroachDB pods on the Pods page and click Logs. This will reveal the JDBC URL that your application can use to connect to CockroachDB:



Step 8. Delete the cluster

If you want to continue using this cluster, see the documentation on , , , and the cluster.

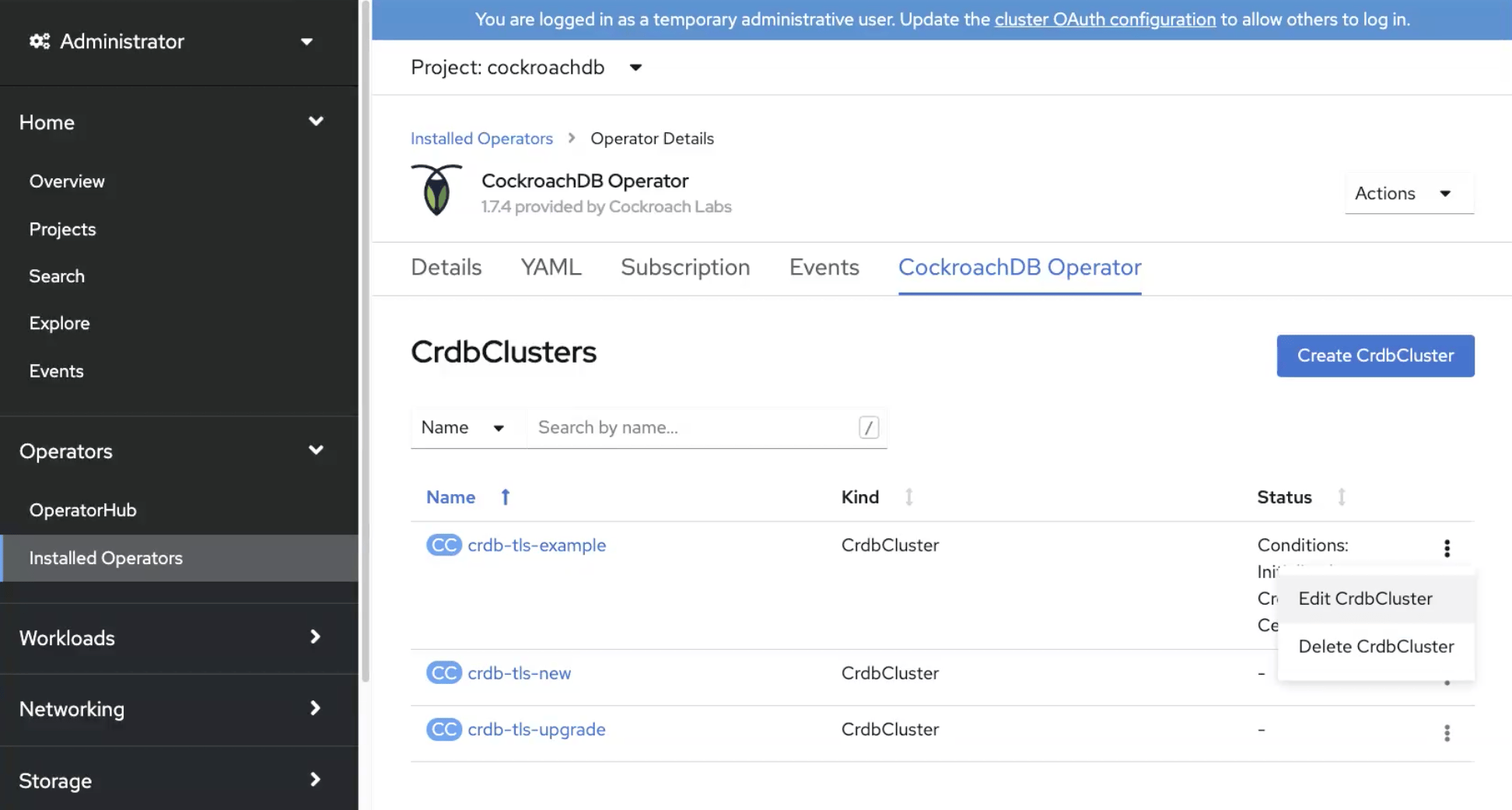

1. Go to the Installed Operators page and find the cluster name of the CockroachDB cluster. Select Delete CrdbCluster from the menu.



This will delete the CockroachDB cluster being run by the operator. It will not delete:

• The persistent volumes that were attached to the pods. This can be done by deleting the PVCs via Storage > Persistent Volume Claims.
• The opaque secrets used to authenticate the cluster. This can be done via Workloads > Secrets.

If you want to delete the persistent volumes and free up the storage used by CockroachDB, be sure you have a backup copy of your data. Data cannot be recovered once the persistent volumes are deleted. For more information, see the Kubernetes documentation.

For more information on managing secrets, see the Kubernetes documentation.
