The EXPLAIN returns CockroachDB’s statement plan for a . You can use this information to optimize the query.

To execute a statement and return a physical statement plan with execution statistics, use .

Query optimization

Using EXPLAIN output, you can optimize your queries as follows:

Restructure queries to require fewer levels of processing. Queries with fewer levels execute more quickly.
Avoid scanning an entire table, which is the slowest way to access data. that contain at least one of the columns that the query is filtering in its WHERE clause.

You can find out if your queries are performing entire table scans by using EXPLAIN to see which:

Indexes the query uses; shown as the value of the table property.
Key values in the index are being scanned; shown as the value of the spans property.

You can also see the estimated number of rows that a scan will perform in the estimated row count property. For more information about indexing and table scans, see Find the Indexes and Key Ranges a Query Uses.

Synopsis

Required privileges

The user requires the appropriate for the statement being explained.

Parameters

Parameter	Description
`VERBOSE`	Show as much information as possible about the statement plan. See `VERBOSE` option.
`TYPES`	Include the intermediate CockroachDB chooses to evaluate intermediate SQL expressions. See `TYPES` option.
`OPT`	Display the statement plan tree generated by the . See `OPT` option.
`ENV`	Include all details used by the optimizer, including statistics. See `ENV` suboption.
`MEMO`	Print a representation of the optimizer memo with the best plan. See `MEMO` suboption.
`REDACT`	Redact constants, literal values, parameter values, and personally identifiable information (PII) from the output. See `REDACT` option.
`VEC`	Show detailed information about the plan for a query. See `VEC` option.

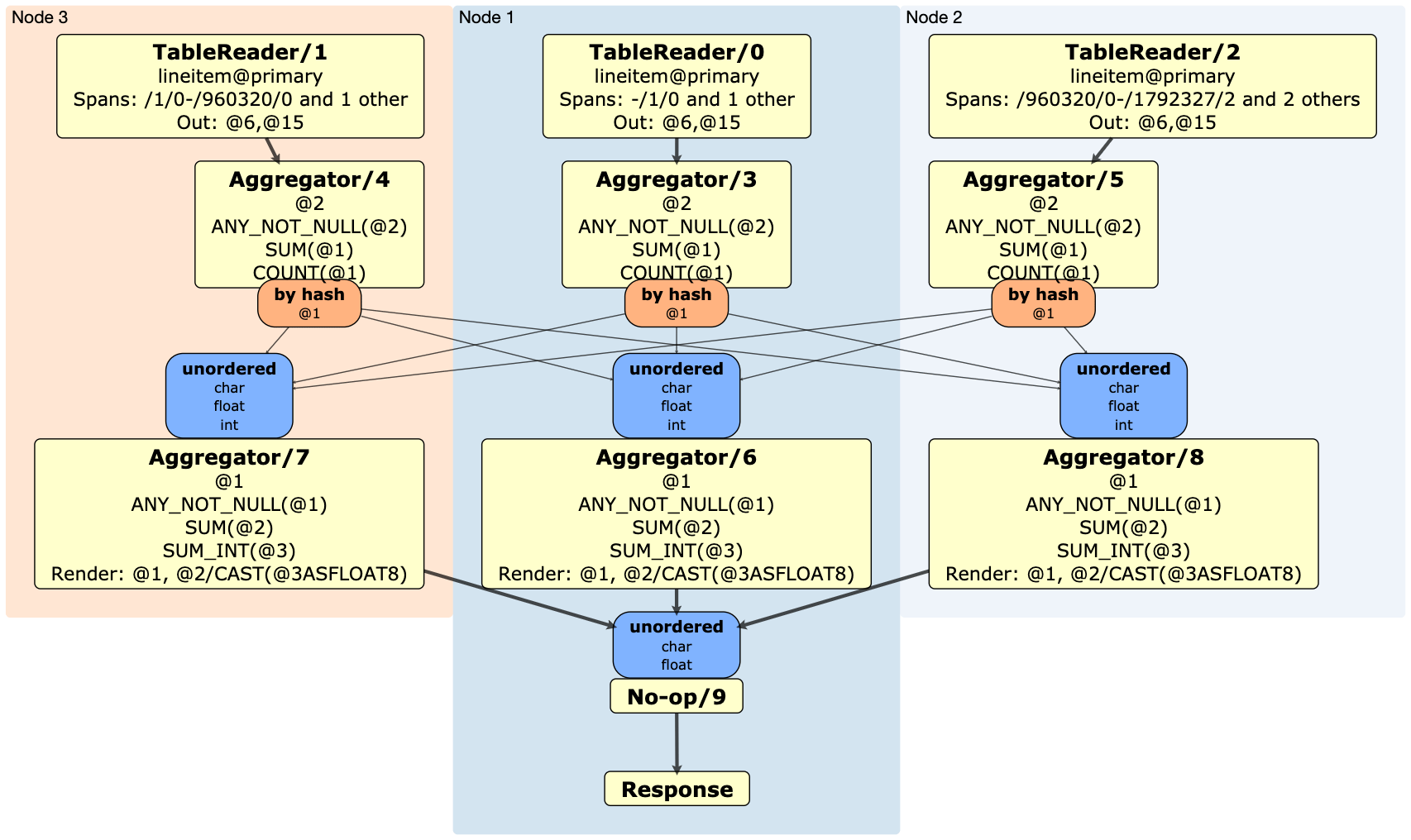

`DISTSQL`	Generate a URL to a . See `DISTSQL` option.
`preparable_stmt`	The you want details about. All preparable statements are explainable.

Success responses

A successful EXPLAIN statement returns a table with the following details in the info column:

Detail	Description
Global properties	The properties and statistics that apply to the entire statement plan.
Statement plan tree properties	A tree representation of the hierarchy of the statement plan.
Node details	The properties, columns, and ordering details for the current statement plan node in the tree.
`index recommendations`	Number of index recommendations followed by a list of index actions and SQL statements to perform the actions.
`Time`	The time details for the query. The total time is the planning and execution time of the query. The execution time is the time it took for the final statement plan to complete. The network time is the amount of time it took to distribute the query across the relevant nodes in the cluster. Some queries do not need to be distributed, so the network time is 0ms.

Global properties

Property	Description
`distribution`	Whether the statement was distributed or local. If `distribution` is `full`, execution of the statement is performed by multiple nodes in parallel, then the results are returned by the gateway node. If `local`, the execution plan is performed only on the gateway node. Even if the execution plan is `local`, row data may be fetched from remote nodes, but the processing of the data is performed by the local node.
`vectorized`	Whether the was used in this statement.

Statement plan tree properties

Property	Description
`processor`	Each processor in the statement plan hierarchy has a node with details about that phase of the statement. For example, a statement with a `GROUP BY` clause has a `group` processor with details about the cluster nodes, rows, and operations related to the `GROUP BY` operation.
`estimated row count`	The estimated number of rows affected by this processor according to the statement planner, the percentage of the table the query spans, and when the statistics for the table were last collected.
`table`	The table and index used in a scan operation in a statement, in the form `{table name}@{index name}`.
`spans`	The interval of the key space read by the processor. `FULL SCAN` indicates that the table is scanned on all key ranges of the index (also known as a “full table scan” or “unlimited full scan”). `FULL SCAN (SOFT LIMIT)` indicates that a full table scan can be performed, but will halt early once enough rows have been scanned. `LIMITED SCAN` indicates that the table will be scanned on a subset of key ranges of the index. `[/1 - /1]` indicates that only the key with value `1` is read by the processor.

Examples

The following examples use the . Start the on a 3-node CockroachDB demo cluster with a larger data set.

cockroach demo movr --num-histories 250000 --num-promo-codes 250000 --num-rides 125000 --num-users 12500 --num-vehicles 3750 --nodes 3

Default statement plans

By default, EXPLAIN includes the least detail about the statement plan but can be useful to find out which indexes and index key ranges are used by a query. For example:

EXPLAIN SELECT * FROM rides WHERE revenue > 90 ORDER BY revenue ASC;

                                                                       info
---------------------------------------------------------------------------------------------------------------------------------------------------
  distribution: full
  vectorized: true

  • sort
  │ estimated row count: 12,385
  │ order: +revenue
  │
  └── • filter
      │ estimated row count: 12,385
      │ filter: revenue > 90
      │
      └── • scan
            estimated row count: 125,000 (100% of the table; stats collected 19 minutes ago)
            table: rides@rides_pkey
            spans: FULL SCAN

  index recommendations: 1
  1. type: index creation
     SQL command: CREATE INDEX ON rides (revenue) STORING (vehicle_city, rider_id, vehicle_id, start_address, end_address, start_time, end_time);
(19 rows)

Time: 2ms total (execution 2ms / network 0ms)

The output shows the tree structure of the statement plan, in this case a sort, a filter, and a scan. The output also describes a set of properties, some global to the query, some specific to an operation listed in the true structure (in this case, sort, filter, or scan), and an index recommendation:

distribution:full The planner chose a distributed execution plan, where execution of the query is performed by multiple nodes in parallel, then the results are returned by the gateway node. An execution plan with full distribution doesn’t process on all nodes in the cluster. It is executed simultaneously on multiple nodes. An execution plan with local distribution is performed only on the gateway node. Even if the execution plan is local, row data may be fetched from remote nodes, but the processing of the data is performed by the local node.
vectorized:true The plan will be executed with the .
order:+revenue The sort will be ordered ascending on the revenue column.
filter: revenue > 90 The scan filters on the revenue column.
estimated row count:125,000 (100% of the table; stats collected 19 minutes ago) The estimated number of rows scanned by the query, in this case, 125,000 rows of data; the percentage of the table the query spans, in this case 100%; and when the statistics for the table were last collected, in this case 19 minutes ago. If you do not see statistics, you can manually generate table statistics with or configure more frequent statistics generation following the steps in .
table:rides@rides_pkey The table is scanned on the rides_pkey index.
spans:FULL SCAN The table is scanned on all key ranges of the rides_pkey index (also known as a “full table scan” or “unlimited full scan”). For more information on indexes and key ranges, see the following example.
index recommendations: 1 The number of index recommendations, followed by the recommendation and statement. The recommendation to create an index on the rides table and the vehicle_city, rider_id, vehicle_id, start_address, end_address, start_time, and end_time columns will eliminate the full scan of the rides table. Index recommendations are displayed by default. To disable index recommendations, set the index_recommendations_enabled to false.

Suppose you create the recommended index:

CREATE INDEX ON rides (revenue) STORING (vehicle_city, rider_id, vehicle_id, start_address, end_address, start_time, end_time);

The next EXPLAIN call demonstrates that the estimated row count is 10% of the table:

EXPLAIN SELECT * FROM rides WHERE revenue > 90 ORDER BY revenue ASC;

                                        info
------------------------------------------------------------------------------------
  distribution: local
  vectorized: true

  • scan
    estimated row count: 12,647 (10% of the table; stats collected 22 seconds ago)
    table: rides@rides_revenue_idx
    spans: (/90 - ]
(7 rows)

If you then limit the number of returned rows:

EXPLAIN SELECT * FROM rides WHERE revenue > 90 ORDER BY revenue ASC limit 10;

The limit is reflected both in the estimated row count and a limit property:

                                       info
-----------------------------------------------------------------------------------
  distribution: local
  vectorized: true

  • scan
    estimated row count: 10 (<0.01% of the table; stats collected 32 seconds ago)
    table: rides@rides_revenue_idx
    spans: (/90 - ]
    limit: 10
(8 rows)

Join queries

If you run EXPLAIN on a query, the output will display which type of join will be executed. For example, the following EXPLAIN output shows that the query will perform a :

EXPLAIN SELECT * FROM rides AS r
JOIN users AS u ON r.rider_id = u.id;

                                                                       info
---------------------------------------------------------------------------------------------------------------------------------------------------
  distribution: full
  vectorized: true

  • hash join
  │ estimated row count: 124,482
  │ equality: (rider_id) = (id)
  │
  ├── • scan
  │     estimated row count: 125,000 (100% of the table; stats collected 13 minutes ago)
  │     table: rides@rides_pkey
  │     spans: FULL SCAN
  │
  └── • scan
        estimated row count: 12,500 (100% of the table; stats collected 14 minutes ago)
        table: users@users_pkey
        spans: FULL SCAN

  index recommendations: 2
  1. type: index creation
     SQL command: CREATE INDEX ON rides (rider_id) STORING (vehicle_city, vehicle_id, start_address, end_address, start_time, end_time, revenue);
  1. type: index creation
     SQL command: CREATE INDEX ON users (id) STORING (name, address, credit_card);
(22 rows)

Time: 2ms total (execution 2ms / network 0ms)

The following output shows that the query will perform a cross join:

EXPLAIN SELECT * FROM rides AS r
JOIN users AS u ON r.city = 'new york';

                                          info
-----------------------------------------------------------------------------------------
  distribution: full
  vectorized: true

  • cross join
  │ estimated row count: 178,283,221
  │
  ├── • scan
  │     estimated row count: 14,263 (11% of the table; stats collected 14 minutes ago)
  │     table: rides@rides_pkey
  │     spans: [/'new york' - /'new york']
  │
  └── • scan
        estimated row count: 12,500 (100% of the table; stats collected 15 minutes ago)
        table: users@users_pkey
        spans: FULL SCAN
(15 rows)

Time: 2ms total (execution 2ms / network 0ms)

Insert queries

EXPLAIN output for queries is similar to the output for standard SELECT queries. For example:

EXPLAIN INSERT INTO users(id, city, name) VALUES ('c28f5c28-f5c2-4000-8000-000000000026', 'new york', 'Petee');

                         info
-------------------------------------------------------
  distribution: local
  vectorized: true

  • insert fast path
    into: users(id, city, name, address, credit_card)
    auto commit
    size: 5 columns, 1 row
(7 rows)

Time: 1ms total (execution 1ms / network 0ms)

The output for this INSERT lists the primary operation (in this case, insert), and the table and columns affected by the operation in the into field (in this case, the id, city, name, address, and credit_card columns of the users table). The output also includes the size of the INSERT in the size field (in this case, 5 columns in a single row). For more complex types of INSERT queries, EXPLAIN output can include more information. For example, suppose that you create a UNIQUE index on the users table:

CREATE UNIQUE INDEX ON users(city, id, name);

To display the EXPLAIN output for an , which inserts some data that might conflict with the UNIQUE constraint imposed on the name, city, and id columns, run:

EXPLAIN INSERT INTO users(id, city, name) VALUES ('c28f5c28-f5c2-4000-8000-000000000026', 'new york', 'Petee') ON CONFLICT DO NOTHING;

                                                               info
----------------------------------------------------------------------------------------------------------------------------------
  distribution: local
  vectorized: true

  • insert
  │ into: users(id, city, name, address, credit_card)
  │ auto commit
  │ arbiter indexes: users_pkey, users_city_id_name_key
  │
  └── • lookup join (anti)
      │ estimated row count: 0
      │ table: users@users_city_id_name_key
      │ equality: (city_cast, column1, name_cast) = (city,id,name)
      │ equality cols are key
      │
      └── • cross join (anti)
          │ estimated row count: 0
          │
          ├── • values
          │     size: 4 columns, 1 row
          │
          └── • scan
                estimated row count: 1 (<0.01% of the table; stats collected 18 minutes ago)
                table: users@users_city_id_name_key
                spans: [/'new york'/'c28f5c28-f5c2-4000-8000-000000000026' - /'new york'/'c28f5c28-f5c2-4000-8000-000000000026']
(24 rows)

Time: 3ms total (execution 3ms / network 0ms)

Because the INSERT includes an ON CONFLICT clause, the query requires more than a simple insert operation. CockroachDB must check the provided values against the values in the database, to ensure that the UNIQUE constraint on name, city, and id is not violated. The output also lists the indexes available to detect conflicts (the arbiter indexes), including the users_city_id_name_key index.

Alter queries

If you alter a table to split a range as described in , the EXPLAIN command returns the target table and index names and a NULL expiry timestamp:

EXPLAIN ALTER TABLE users SPLIT AT VALUES ('chicago'), ('new york'), ('seattle');

               info
----------------------------------
  distribution: local
  vectorized: true

  • split
  │ index: users@users_pkey
  │ expiry: CAST(NULL AS STRING)
  │
  └── • values
        size: 1 column, 3 rows
(9 rows)

If you alter a table to split a range as described in , the EXPLAIN command returns the target table and index names and the expiry timestamp:

EXPLAIN ALTER TABLE vehicles SPLIT AT VALUES ('chicago'), ('new york'), ('seattle') WITH EXPIRATION '2022-08-10 23:30:00+00:00';

                  info
-----------------------------------------
  distribution: local
  vectorized: true

  • split
  │ index: vehicles@vehicles_pkey
  │ expiry: '2022-08-10 23:30:00+00:00'
  │
  └── • values
        size: 1 column, 3 rows
(9 rows)

Options

`VERBOSE` option

The VERBOSE option includes:

SQL expressions that are involved in each processing stage, providing more granular detail about which portion of your query is represented at each level.
Detail about which columns are being used by each level, as well as properties of the result set on that level.

EXPLAIN (VERBOSE) SELECT * FROM rides AS r
JOIN users AS u ON r.rider_id = u.id
WHERE r.city = 'new york'
ORDER BY r.revenue ASC;

                   info
------------------------------------------------------------------------------------------------------------------------------------------------------------------
  distribution: full
  vectorized: true

  • sort
  │ columns: (id, city, vehicle_city, rider_id, vehicle_id, start_address, end_address, start_time, end_time, revenue, id, city, name, address, credit_card)
  │ ordering: +revenue
  │ estimated row count: 14,087
  │ order: +revenue
  │
  └── • hash join (inner)
      │ columns: (id, city, vehicle_city, rider_id, vehicle_id, start_address, end_address, start_time, end_time, revenue, id, city, name, address, credit_card)
      │ estimated row count: 14,087
      │ equality: (rider_id) = (id)
      │
      ├── • scan
      │     columns: (id, city, vehicle_city, rider_id, vehicle_id, start_address, end_address, start_time, end_time, revenue)
      │     estimated row count: 14,087 (11% of the table; stats collected 29 minutes ago)
      │     table: rides@rides_pkey
      │     spans: /"new york"-/"new york"/PrefixEnd
      │
      └── • scan
            columns: (id, city, name, address, credit_card)
            estimated row count: 12,500 (100% of the table; stats collected 42 seconds ago)
            table: users@users_pkey
            spans: FULL SCAN
(25 rows)

Time: 2ms total (execution 2ms / network 0ms)

`TYPES` option

The TYPES option includes:

The types of the values used in the statement plan.
The SQL expressions that were involved in each processing stage, and the columns used by each level.
All information that is included with the VERBOSE option.

EXPLAIN (TYPES) SELECT * FROM rides WHERE revenue > 90 ORDER BY revenue ASC;

                   info
----------------------------------------------------------------------------------------------------

  distribution: full
  vectorized: true

  • sort
  │ columns: (id uuid, city varchar, vehicle_city varchar, rider_id uuid, vehicle_id uuid, start_address varchar, end_address varchar, start_time timestamp, end_time timestamp, revenue decimal)
  │ ordering: +revenue
  │ estimated row count: 12,317
  │ order: +revenue
  │
  └── • filter
      │ columns: (id uuid, city varchar, vehicle_city varchar, rider_id uuid, vehicle_id uuid, start_address varchar, end_address varchar, start_time timestamp, end_time timestamp, revenue decimal)
      │ estimated row count: 12,317
      │ filter: ((revenue)[decimal] > (90)[decimal])[bool]
      │
      └── • scan
            columns: (id uuid, city varchar, vehicle_city varchar, rider_id uuid, vehicle_id uuid, start_address varchar, end_address varchar, start_time timestamp, end_time timestamp, revenue decimal)
            estimated row count: 125,000 (100% of the table; stats collected 29 minutes ago)
            table: rides@rides_pkey
            spans: FULL SCAN
(19 rows)

Time: 1ms total (execution 1ms / network 0ms)

`REDACT` option

The REDACT option causes constants, literal values, parameter values, and personally identifiable information (PII) to be redacted as ‹×› in the physical statement plan. You can also use REDACT with the OPT option and its suboptions.

EXPLAIN (REDACT) SELECT * FROM rides WHERE revenue > 90 ORDER BY revenue ASC;

                                                                             info
---------------------------------------------------------------------------------------------------------------------------------------------------------------
  distribution: local
  vectorized: true

  • sort
  │ estimated row count: 12,156
  │ order: +revenue
  │
  └── • filter
      │ estimated row count: 12,156
      │ filter: revenue > ‹×›
      │
      └── • scan
            estimated row count: 125,000 (100% of the table; stats collected 22 hours ago)
            table: rides@rides_pkey
            spans: FULL SCAN

  index recommendations: 1
  1. type: index creation
     SQL command: CREATE INDEX ON movr.public.rides (revenue) STORING (vehicle_city, rider_id, vehicle_id, start_address, end_address, start_time, end_time);
(19 rows)

Time: 5ms total (execution 5ms / network 0ms)

In the preceding output, the revenue comparison value is redacted as ‹×›.

`OPT` option

To display the statement plan tree generated by the , use the OPT option . For example:

EXPLAIN (OPT) SELECT * FROM rides WHERE revenue > 90 ORDER BY revenue ASC;

             info
-------------------------------
  sort
   └── select
        ├── scan rides
        └── filters
             └── revenue > 90
(5 rows)

Time: 1ms total (execution 1ms / network 0ms)

OPT has five suboptions: VERBOSE, TYPES, ENV, MEMO, REDACT.

`OPT, VERBOSE` option

To include cost details used by the optimizer in planning the query, use the OPT, VERBOSE option:

EXPLAIN (OPT, VERBOSE) SELECT * FROM rides WHERE revenue > 90 ORDER BY revenue ASC;

                                 info
---------------------------------------------------------------------------------------------------- ...
  sort
   ├── columns: id:1 city:2 vehicle_city:3 rider_id:4 vehicle_id:5 start_address:6 end_address:7 start_time:8 end_time:9 revenue:10
   ├── immutable
   ├── stats: [rows=12316.644, distinct(10)=9.90909091, null(10)=0]
   │   histogram(10)=  0  0   11130 1187
   │                 <--- 90 ------- 99
   ├── cost: 156091.288
   ├── key: (1,2)
   ├── fd: (1,2)-->(3-10)
   ├── ordering: +10
   ├── prune: (1-9)
   ├── interesting orderings: (+2,+1) (+2,+4,+1) (+3,+5,+2,+1) (+8,+2,+1) (+4,+2,+1)
   └── select
        ├── columns: id:1 city:2 vehicle_city:3 rider_id:4 vehicle_id:5 start_address:6 end_address:7 start_time:8 end_time:9 revenue:10
        ├── immutable
        ├── stats: [rows=12316.644, distinct(10)=9.90909091, null(10)=0]
        │   histogram(10)=  0  0   11130 1187
        │                 <--- 90 ------- 99
        ├── cost: 151266.03
        ├── key: (1,2)
        ├── fd: (1,2)-->(3-10)
        ├── prune: (1-9)
        ├── interesting orderings: (+2,+1) (+2,+4,+1) (+3,+5,+2,+1) (+8,+2,+1) (+4,+2,+1)
        ├── scan rides
        │    ├── columns: id:1 city:2 vehicle_city:3 rider_id:4 vehicle_id:5 start_address:6 end_address:7 start_time:8 end_time:9 revenue:10
        │    ├── stats: [rows=125000, distinct(1)=125000, null(1)=0, distinct(2)=9, null(2)=0, distinct(10)=100, null(10)=0]
        │    │   histogram(1)=  0                    12                    612                    12                    612                    12                 612
                              <--- '00064a9c-dc44-4915-8000-00000000000c' ----- '0162f166-e008-49b0-8000-0000000002a5' ----- '02834d26-fa3f-4ca0-8000-0000000004cb' ----- '03c85c24-c404-4720-
        │    │   histogram(2)=  0     14512     0   13637    0      14512      0    14087     0   13837   0  13737   0       13550       0    13412    0       13712
        │    │                <--- 'amsterdam' --- 'boston' --- 'los angeles' --- 'new york' --- 'paris' --- 'rome' --- 'san francisco' --- 'seattle' --- 'washington dc'
        │    │   histogram(10)=  0 1387 1.2242e+05 1187
        │    │                <--- 0 ------------- 99
        │    ├── cost: 150016.01
        │    ├── key: (1,2)
        │    ├── fd: (1,2)-->(3-10)
        │    ├── prune: (1-10)
        │    └── interesting orderings: (+2,+1) (+2,+4,+1) (+3,+5,+2,+1) (+8,+2,+1) (+4,+2,+1)
        └── filters
             └── revenue:10 > 90 [outer=(10), immutable, constraints=(/10: (/90 - ]; tight)]
(39 rows)

Time: 4ms total (execution 3ms / network 1ms)

`OPT, TYPES` option

To include cost and type details, use the OPT, TYPES option:

EXPLAIN (OPT, TYPES) SELECT * FROM rides WHERE revenue > 90 ORDER BY revenue ASC;

                                 info
---------------------------------------------------------------------------------------------------- ...
  sort
   ├── columns: id:1(uuid!null) city:2(varchar!null) vehicle_city:3(varchar) rider_id:4(uuid) vehicle_id:5(uuid) start_address:6(varchar) end_address:7(varchar) start_time:8(timestamp) end_time:9(timestamp) revenue:10(decimal!null)
   ├── immutable
   ├── stats: [rows=12316.644, distinct(10)=9.90909091, null(10)=0]
   │   histogram(10)=  0  0   11130 1187
   │                 <--- 90 ------- 99
   ├── cost: 156091.288
   ├── key: (1,2)
   ├── fd: (1,2)-->(3-10)
   ├── ordering: +10
   ├── prune: (1-9)
   ├── interesting orderings: (+2,+1) (+2,+4,+1) (+3,+5,+2,+1) (+8,+2,+1) (+4,+2,+1)
   └── select
        ├── columns: id:1(uuid!null) city:2(varchar!null) vehicle_city:3(varchar) rider_id:4(uuid) vehicle_id:5(uuid) start_address:6(varchar) end_address:7(varchar) start_time:8(timestamp) end_time:9(timestamp) revenue:10(decimal!null)
        ├── immutable
        ├── stats: [rows=12316.644, distinct(10)=9.90909091, null(10)=0]
        │   histogram(10)=  0  0   11130 1187
        │                 <--- 90 ------- 99
        ├── cost: 151266.03
        ├── key: (1,2)
        ├── fd: (1,2)-->(3-10)
        ├── prune: (1-9)
        ├── interesting orderings: (+2,+1) (+2,+4,+1) (+3,+5,+2,+1) (+8,+2,+1) (+4,+2,+1)
        ├── scan rides
        │    ├── columns: id:1(uuid!null) city:2(varchar!null) vehicle_city:3(varchar) rider_id:4(uuid) vehicle_id:5(uuid) start_address:6(varchar) end_address:7(varchar) start_time:8(timestamp) end_time:9(timestamp) revenue:10(decimal)
        │    ├── stats: [rows=125000, distinct(1)=125000, null(1)=0, distinct(2)=9, null(2)=0, distinct(10)=100, null(10)=0]
        │    │   histogram(1)=  0                    12                    612                    12                    612                    12                    612
        │    │                <--- '00064a9c-dc44-4915-8000-00000000000c' ----- '0162f166-e008-49b0-8000-0000000002a5' ----- '02834d26-fa3f-4ca0-8000-0000000004cb' ----- '03c85c24-c404-4720-
        │    │   histogram(2)=  0     14512     0   13637    0      14512      0    14087     0   13837   0  13737   0       13550       0    13412    0       13712
        │    │                <--- 'amsterdam' --- 'boston' --- 'los angeles' --- 'new york' --- 'paris' --- 'rome' --- 'san francisco' --- 'seattle' --- 'washington dc'
        │    │   histogram(10)=  0 1387 1.2242e+05 1187
        │    │                <--- 0 ------------- 99
        │    ├── cost: 150016.01
        │    ├── key: (1,2)
        │    ├── fd: (1,2)-->(3-10)
        │    ├── prune: (1-10)
        │    └── interesting orderings: (+2,+1) (+2,+4,+1) (+3,+5,+2,+1) (+8,+2,+1) (+4,+2,+1)
        └── filters
             └── gt [type=bool, outer=(10), immutable, constraints=(/10: (/90 - ]; tight)]
                  ├── variable: revenue:10 [type=decimal]
                  └── const: 90 [type=decimal]
(41 rows)

Time: 4ms total (execution 3ms / network 1ms)

`OPT, ENV` option

To include all details used by the optimizer, including statistics, use the OPT, ENV option.

EXPLAIN (OPT, ENV) SELECT * FROM rides WHERE revenue > 90 ORDER BY revenue ASC;

The output of EXPLAIN (OPT, ENV) is a URL with the data encoded in the fragment portion. Encoding the data makes it easier to share debugging information across different systems without encountering formatting issues. Opening the URL shows a page with the decoded data. The data is processed in the local browser session and is never sent out over the network. Keep in mind that if you are using any browser extensions, they may be able to access the data locally.

                             info
----------------------------------------------------------------- ...
  https://cockroachdb.github.io/text/decode.html#eJzsm9Fum0gXx6_L ...
(1 row)

Time: 32ms total (execution 32ms / network 0ms)

When you open the URL you should see the following output in your browser.

-- Version: CockroachDB CCL <version and build info>

-- reorder_joins_limit has the default value: 8
-- enable_zigzag_join has the default value: on
-- optimizer_use_histograms has the default value: on
-- optimizer_use_multicol_stats has the default value: on
-- locality_optimized_partitioned_index_scan has the default value: on
-- distsql has the default value: auto
-- vectorize has the default value: on

CREATE TABLE public.rides (
	id UUID NOT NULL,
	city VARCHAR NOT NULL,
	vehicle_city VARCHAR NULL,
	rider_id UUID NULL,
	vehicle_id UUID NULL,
	start_address VARCHAR NULL,
	end_address VARCHAR NULL,
	start_time TIMESTAMP NULL,
	end_time TIMESTAMP NULL,
	revenue DECIMAL(10,2) NULL,
	CONSTRAINT "primary" PRIMARY KEY (city ASC, id ASC),
	CONSTRAINT fk_city_ref_users FOREIGN KEY (city, rider_id) REFERENCES public.users(city, id),
	CONSTRAINT fk_vehicle_city_ref_vehicles FOREIGN KEY (vehicle_city, vehicle_id) REFERENCES public.vehicles(city, id),
	INDEX rides_auto_index_fk_city_ref_users (city ASC, rider_id ASC),
	INDEX rides_auto_index_fk_vehicle_city_ref_vehicles (vehicle_city ASC, vehicle_id ASC),
	INDEX rides_start_time_idx (start_time ASC) STORING (rider_id),
	INDEX rides_rider_id_idx (rider_id ASC),
	FAMILY "primary" (id, city, vehicle_city, rider_id, vehicle_id, start_address, end_address, start_time, end_time, revenue),
	CONSTRAINT check_vehicle_city_city CHECK (vehicle_city = city)
);

ALTER TABLE movr.public.rides INJECT STATISTICS '[
    {
        "columns": [
            "city"
        ],
        "created_at": "2021-03-16 17:27:01.301903",
        "distinct_count": 9,
        "histo_col_type": "STRING",
        "name": "__auto__",
        "null_count": 0,
        "row_count": 125000
    },
    {
        "columns": [
            "id"
        ],
        "created_at": "2021-03-16 17:27:01.301903",
        "distinct_count": 125617,
        "histo_col_type": "UUID",
        "name": "__auto__",
        "null_count": 0,
        "row_count": 125000
    },
    {
        "columns": [
            "city",
            "id"
        ],
        "created_at": "2021-03-16 17:27:01.301903",
        "distinct_count": 124937,
        "histo_col_type": "",
        "name": "__auto__",
        "null_count": 0,
        "row_count": 125000
    },
  ...
]';

EXPLAIN (OPT, ENV) SELECT * FROM rides WHERE revenue > 90 ORDER BY revenue ASC;
----
sort
 └── select
      ├── scan rides
      └── filters
           └── revenue > 90

`OPT, MEMO` option

The MEMO suboption prints a representation of the optimizer memo with the best plan. You can use the MEMO flag in combination with other flags. For example, EXPLAIN (OPT, MEMO, VERBOSE) prints the memo along with verbose output for the best plan.

EXPLAIN (OPT, MEMO) SELECT * FROM rides WHERE revenue > 90 ORDER BY revenue ASC;

                                  info
---------------------------------------------------------------------------------------------------- ...
  memo (optimized, ~5KB, required=[presentation: info:13])
   ├── G1: (explain G2 [presentation: id:1,city:2,vehicle_city:3,rider_id:4,vehicle_id:5,start_address:6,end_address:7,start_time:8,end_time:9,revenue:10] [ordering: +10])
   │    └── [presentation: info:13]
   │         ├── best: (explain G2="[presentation: id:1,city:2,vehicle_city:3,rider_id:4,vehicle_id:5,start_address:6,end_address:7,start_time:8,end_time:9,revenue:10] [ordering: +10]" [presentation: id:1,city:2,vehicle_city:3,rider_id:4,vehicle_id:5,start_address:6,end_address:7,start_time:8,end_time:9,revenue:10] [ordering: +10])
   │         └── cost: 2939.68
   ├── G2: (select G3 G4)
   │    ├── [presentation: id:1,city:2,vehicle_city:3,rider_id:4,vehicle_id:5,start_address:6,end_address:7,start_time:8,end_time:9,revenue:10] [ordering: +10]
   │    │    ├── best: (sort G2)
   │    │    └── cost: 2939.66
   │    └── []
   │         ├── best: (select G3 G4)
   │         └── cost: 2883.30
   ├── G3: (scan rides,cols=(1-10))
   │    ├── [ordering: +10]
   │    │    ├── best: (sort G3)
   │    │    └── cost: 3551.50
   │    └── []
   │         ├── best: (scan rides,cols=(1-10))
   │         └── cost: 2863.02
   ├── G4: (filters G5)
   ├── G5: (gt G6 G7)
   ├── G6: (variable revenue)
   └── G7: (const 90)
  sort
   └── select
        ├── scan rides
        └── filters
             └── revenue > 90
(28 rows)

Time: 2ms total (execution 2ms / network 1ms)

`OPT, REDACT` option

The REDACT suboption causes constants, literal values, parameter values, and personally identifiable information (PII) to be redacted as ‹×› in the physical statement plan. You can also use the REDACT option in combination with the VERBOSE, TYPES, and MEMO suboptions.

EXPLAIN (OPT, REDACT) SELECT * FROM rides WHERE revenue > 90 ORDER BY revenue ASC;

                info
-------------------------------------
  distribute
   └── sort
        └── select
             ├── scan rides
             └── filters
                  └── revenue > ‹×›
(6 rows)

In the preceding output, the revenue comparison value is redacted as ‹×›.

`VEC` option

To view details about the for the query, use the VEC option.

EXPLAIN (VEC) SELECT * FROM rides WHERE revenue > 90 ORDER BY revenue ASC;

The output shows the different internal functions that will be used to process each batch of column-oriented data.

                      info
------------------------------------------------
  │
  └ Node 1
    └ *colexec.sortOp
      └ *colexecsel.selGTDecimalDecimalConstOp
        └ *colfetcher.ColBatchScan
(5 rows)

Time: 1ms total (execution 1ms / network 0ms)

`DISTSQL` option

To view a physical statement plan that provides high level information about how a query will be executed, use the DISTSQL option. For more information about distributed SQL queries, see the . The generated physical statement plan is encoded into a byte string after the fragment identifier (#) in the generated URL. The fragment is not sent to the web server; instead, the browser waits for the web server to return a decode.html resource, and then JavaScript on the web page decodes the fragment into a physical statement plan diagram. The statement plan is, therefore, not logged by a server external to the CockroachDB cluster and not exposed to the public internet. For example, the following EXPLAIN (DISTSQL) statement generates a physical plan for a simple query against the TPC-H database loaded to a 3-node CockroachDB cluster:

EXPLAIN (DISTSQL) SELECT l_shipmode, AVG(l_extendedprice) FROM lineitem GROUP BY l_shipmode;

The output of EXPLAIN (DISTSQL) is a URL for a graphical diagram that displays the processors and operations that make up the physical statement plan. For details about the physical statement plan, see .

 automatic |                      url
-----------+----------------------------------------------
   true    | https://cockroachdb.github.io/distsqlplan ...

To view the , open the URL. You should see the following:

To include the data types of the input columns in the physical plan, use EXPLAIN(DISTSQL, TYPES):

EXPLAIN (DISTSQL, TYPES) SELECT l_shipmode, AVG(l_extendedprice) FROM lineitem GROUP BY l_shipmode;

 automatic |                      url
-----------+----------------------------------------------
   true    | https://cockroachdb.github.io/distsqlplan ...

Open the URL. You should see the following:

Find the indexes and key ranges a query uses

You can use EXPLAIN to understand which indexes and key ranges queries use, which can help you ensure a query isn’t performing a full table scan.

CREATE TABLE kv (k INT PRIMARY KEY, v INT);

Because column v is not indexed, queries filtering on it alone scan the entire table:

EXPLAIN SELECT * FROM kv WHERE v BETWEEN 4 AND 5;

               info
-----------------------------------
  distribution: full
  vectorized: true

  • filter
  │ filter: (v >= 4) AND (v <= 5)
  │
  └── • scan
        missing stats
        table: kv@kv_pkey
        spans: FULL SCAN
(10 rows)

Time: 50ms total (execution 50ms / network 0ms)

You can disable statement plans that perform full table scans with the disallow_full_table_scans . When disallow_full_table_scans=on, attempting to execute a query with a plan that includes a full table scan will return an error:

SET disallow_full_table_scans=on;

SELECT * FROM kv WHERE v BETWEEN 4 AND 5;

ERROR: query `SELECT * FROM kv WHERE v BETWEEN 4 AND 5` contains a full table/index scan which is explicitly disallowed
SQLSTATE: P0003
HINT: try overriding the `disallow_full_table_scans` cluster/session setting

If there were an index on v, CockroachDB would be able to avoid scanning the entire table:

CREATE INDEX v ON kv (v);

EXPLAIN SELECT * FROM kv WHERE v BETWEEN 4 AND 5;

                                      info
--------------------------------------------------------------------------------
  distribution: local
  vectorized: true

  • scan
    estimated row count: 1 (100% of the table; stats collected 11 seconds ago)
    table: kv@v
    spans: [/4 - /5]
(7 rows)

Time: 1ms total (execution 1ms / network 0ms)

Now only part of the index v is getting scanned, specifically the key range starting at (and including) 4 and stopping before 6. This statement plan is not distributed across nodes on the cluster.

Find out if a statement is using `SELECT FOR UPDATE` locking

CockroachDB has support for ordering transactions by controlling concurrent access to one or more rows of a table using locks. SELECT FOR UPDATE locking can result in improved performance for contended operations. It applies to the following statements:

Suppose you have a table of key-value pairs:

CREATE TABLE IF NOT EXISTS kv (k INT PRIMARY KEY, v INT);
UPSERT INTO kv (k, v) VALUES (1, 5), (2, 10), (3, 15);

You can use EXPLAIN to determine whether the following UPDATE is using SELECT FOR UPDATE locking.

EXPLAIN UPDATE kv SET v = 100 WHERE k = 1;

The following output contains a locking strength field, which means that SELECT FOR UPDATE locking is being used. If the locking strength field does not appear, the statement is not using SELECT FOR UPDATE locking.

                   info
------------------------------------------
  distribution: local
  vectorized: true

  • update
  │ table: kv
  │ set: v
  │ auto commit
  │
  └── • render
      │
      └── • scan
            missing stats
            table: kv@kv_pkey
            spans: [/1 - /1]
            locking strength: for update
(15 rows)

Time: 1ms total (execution 1ms / network 0ms)

By default, SELECT FOR UPDATE locking is enabled for the initial row scan of UPDATE and UPSERT statements. To disable it, toggle the .

​Query optimization

​Synopsis

​Required privileges

​Parameters

​Success responses

​Global properties

​Statement plan tree properties

​Examples

​Default statement plans

​Join queries

​Insert queries

​Alter queries

​Options

​VERBOSE option

​TYPES option

​REDACT option

​OPT option

OPT, VERBOSE option

OPT, TYPES option

OPT, ENV option

OPT, MEMO option

OPT, REDACT option

​VEC option

​DISTSQL option

​Find the indexes and key ranges a query uses

​Find out if a statement is using SELECT FOR UPDATE locking

​See also

Query optimization

Synopsis

Required privileges

Parameters

Success responses

Global properties

Statement plan tree properties

Examples

Default statement plans

Join queries

Insert queries

Alter queries

Options

`VERBOSE` option

`TYPES` option

`REDACT` option

`OPT` option

`OPT, VERBOSE` option

`OPT, TYPES` option

`OPT, ENV` option

`OPT, MEMO` option

`OPT, REDACT` option

`VEC` option

`DISTSQL` option

Find the indexes and key ranges a query uses

Find out if a statement is using `SELECT FOR UPDATE` locking

See also
