MovR

MovR is a fictional vehicle-sharing company created to demonstrate CockroachDB’s features.

Overview

The MovR example consists of the following:

• The movr dataset, which contains rows of data that populate tables in the movr database. The movr dataset is built into and .
• The MovR application, a fully-functional vehicle-sharing application, written in Python. All of MovR application source code is open-source, and available on the movr GitHub repository.

The movr database

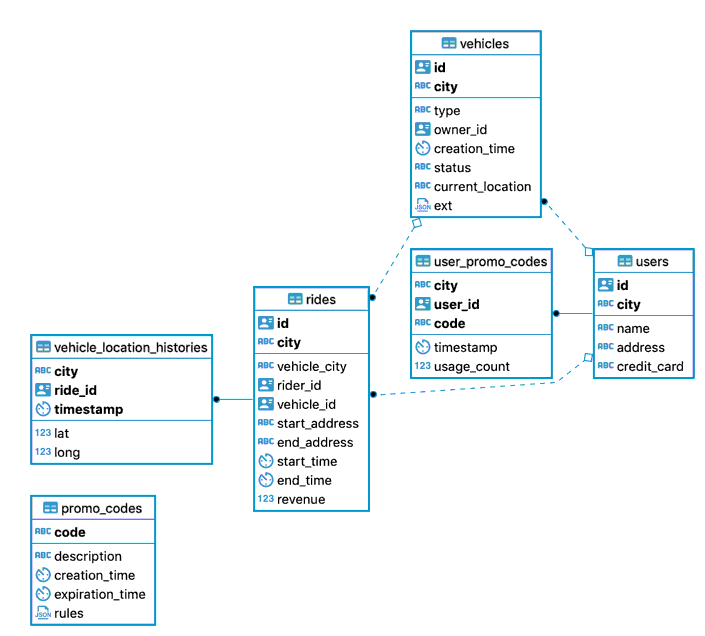

The six tables in the movr database store user, vehicle, and ride data for MovR:

Table	Description
users	People registered for the service.
vehicles	The pool of vehicles available for the service.
rides	When and where users have rented a vehicle.
promo\_codes	Promotional codes for users.
user\_promo\_codes	Promotional codes in use by users.
vehicle\_location\_histories	Vehicle location history.

Generating schemas and data for MovR

You can use the cockroach demo and cockroach workload commands to load the movr database and dataset into a CockroachDB cluster.

opens a SQL shell to a temporary, in-memory cluster. To open a SQL shell to a demo cluster with the movr database preloaded and set as the , use the following command:

$ cockroach demo movr

loads sample datasets and workloads into running clusters. To load the movr database and some sample data into a running cluster, do the following:

1. Start a or local cluster.

2. Use cockroach workload to load the movr dataset:

   Secure

   $ cockroach workload init movr 'postgresql://root@localhost:26257?sslcert=certs%2Fclient.root.crt&sslkey=certs%2Fclient.root.key&sslmode=verify-full&sslrootcert=certs%2Fca.crt'

   Insecure

   $ cockroach workload init movr 'postgresql://root@localhost:26257?sslmode=disable'


3. Use to open an interactive SQL shell and set movr as the :

   $ cockroach sql --certs-dir=certs --host=localhost:26257

   > USE movr;


4. Use to open an interactive SQL shell and set movr as the :

   $ cockroach sql --insecure --host=localhost:26257

   > USE movr;


How the MovR application works

The workflow for MovR is as follows:

1. A user loads the app and sees the 25 closest vehicles.

   For example:

   > SELECT id, city, status FROM vehicles WHERE city='amsterdam' limit 25;


2. The user signs up for the service.

   For example:

   > INSERT INTO users (id, name, address, city, credit_card)
     VALUES ('66666666-6666-4400-8000-00000000000f', 'Mariah Lam', '88194 Angela Gardens Suite 60', 'amsterdam', '123245696');


Usually for you would need to generate it automatically but for the sake of this follow up we will use predetermined UUID to keep track of them in our examples.

3. In some cases, the user adds their own vehicle to share.

   For example:

   > INSERT INTO vehicles (id, city, type, owner_id,creation_time,status, current_location, ext)
     VALUES ('ffffffff-ffff-4400-8000-00000000000f', 'amsterdam', 'skateboard', '66666666-6666-4400-8000-00000000000f', current_timestamp(), 'available', '88194 Angela Gardens Suite 60', '{"color": "blue"}');


4. More often, the user reserves a vehicle and starts a ride, applying a promo code, if available and valid.

   For example:

   > SELECT code FROM user_promo_codes WHERE user_id ='66666666-6666-4400-8000-00000000000f';

   > UPDATE vehicles SET status = 'in_use' WHERE id='bbbbbbbb-bbbb-4800-8000-00000000000b';

   > INSERT INTO rides (id, city, vehicle_city, rider_id, vehicle_id, start_address,end_address, start_time, end_time, revenue)
     VALUES ('cd032f56-cf1a-4800-8000-00000000066f', 'amsterdam', 'amsterdam', '66666666-6666-4400-8000-00000000000f', 'bbbbbbbb-bbbb-4800-8000-00000000000b', '70458 Mary Crest', '', TIMESTAMP '2020-10-01 10:00:00.123456', NULL, 0.0);


5. During the ride, MovR tracks the location of the vehicle.

   For example:

   > INSERT INTO vehicle_location_histories (city, ride_id, timestamp, lat, long)
     VALUES ('amsterdam', 'cd032f56-cf1a-4800-8000-00000000066f', current_timestamp(), -101, 60);


6. The user ends the ride and releases the vehicle.

   For example:

   > UPDATE vehicles SET status = 'available' WHERE id='bbbbbbbb-bbbb-4800-8000-00000000000b';

   > UPDATE rides SET end_address ='33862 Charles Junctions Apt. 49', end_time=TIMESTAMP '2020-10-01 10:30:00.123456', revenue=88.6
     WHERE id='cd032f56-cf1a-4800-8000-00000000066f';
