Transaction Diagnostics

Transaction diagnostics allow operators and support engineers to investigate issues involving in user workloads. Use the built-in function .request_transaction_bundle to request a transaction diagnostics bundle for a specified .

Requesting a transaction diagnostics bundle introduces performance overhead. This feature is primarily intended for use under the guidance of Cockroach Labs Support.

Transaction diagnostics do not contain a for statements executed inside or . However, they do contain a statement diagnostic bundle for the top-level invocation, or call, of the user-defined function or stored procedure.

Required privileges

To use this function on a , you must be an or a SQL user with the or . If the user has only VIEWACTIVITYREDACTED, they can request only redacted bundles.

Function signature

crdb_internal.request_transaction_bundle(
  transaction_fingerprint_id: string,
  sampling_probability: float,
  min_execution_latency: interval,
  expires_after: interval,
  redacted: bool
) -> (request_id: int, created: bool)

Parameters

• transaction_fingerprint_id: A hex-encoded ID of the to capture. The fingerprint ID must exist in crdb_internal.transaction_statistics, which is the system of record for transaction fingerprints.
• sampling_probability: A probability value (between 0 and 1) for sampling whether a transaction bundle should be recorded. If 0 is provided, there is no sampling; the next execution of the transaction will be captured.
• min_execution_latency: The minimum execution time required for the transaction to be considered. If sampling_probability is non-zero, this value must also be non-zero.
• expires_after: The duration for which the request remains active. A value of 0 keeps the request open until fulfilled or canceled.
• redacted: Specifies whether the resulting bundle should be redacted.

Return values

• request_id: The ID of the generated request, or NULL if the request could not be created.
• created: Returns true if the request is successfully created, or false if the specified fingerprint ID does not exist.

Troubleshooting example

To troubleshoot with a transaction diagnostics bundle, follow these steps:

1. Identify the transaction fingerprint ID to generate a bundle for.
2. Create a bundle request for that fingerprint ID.
3. Download the bundle from .
4. Inspect the bundle.

Setup

For this example, set the to enable filtering:

SET application_name = 'cockroachdb_test';

Run the following explicit transaction, which sleeps for 10 seconds:

BEGIN; SELECT pg_sleep(10), 'cockroachdb_test' ; COMMIT;

Step 1. Identify the transaction fingerprint ID

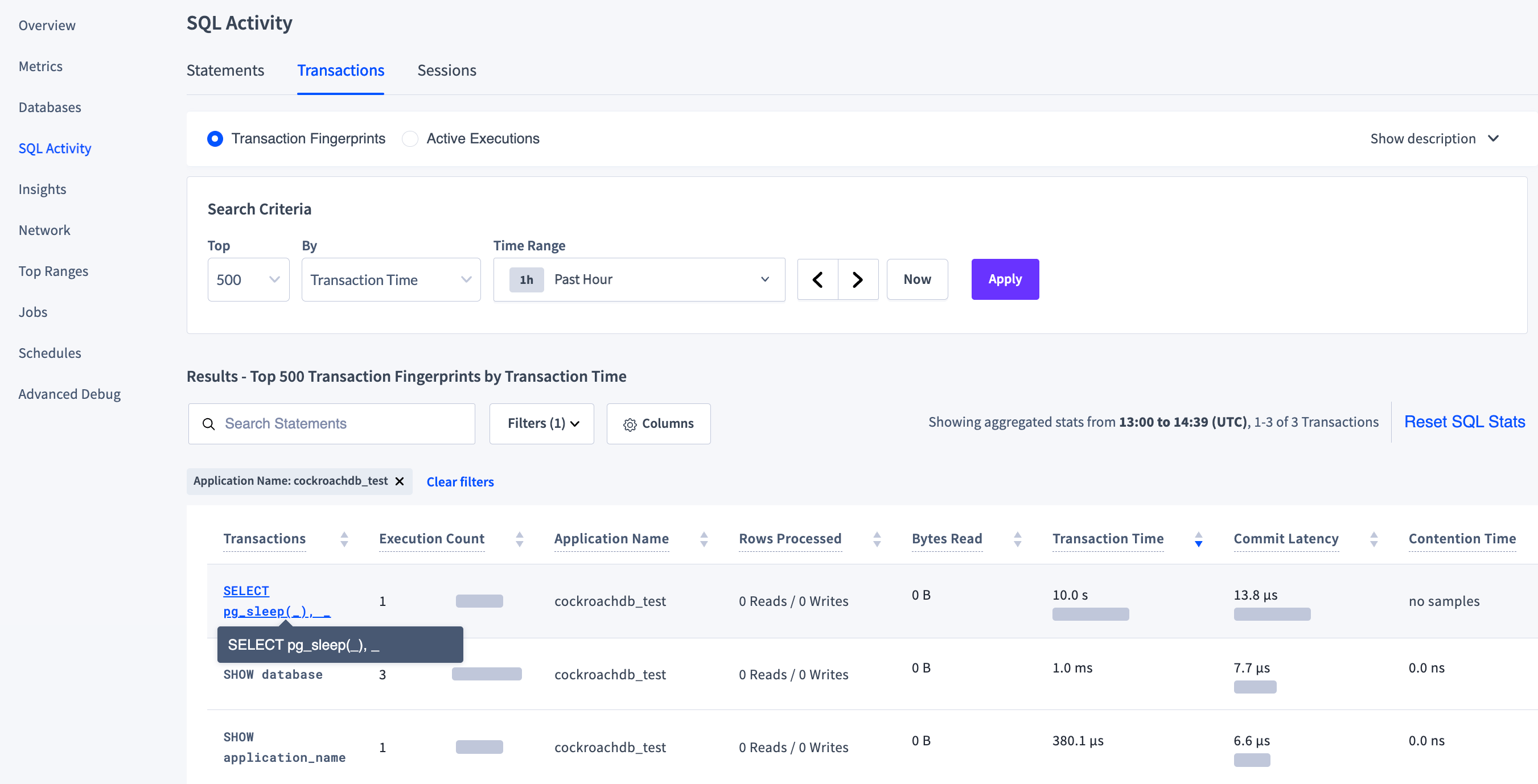

Identify the transaction fingerprint ID of the example transaction by navigating to the page in the . On the tab, search the Top 500 by Transaction Time in the Past Hour and click Apply to list transactions. Filter the transactions by Application Name: cockroachdb_test.

In the Transactions column, click the transaction fingerprint SELECT pg_sleep(_), _ to open the page for that fingerprint.

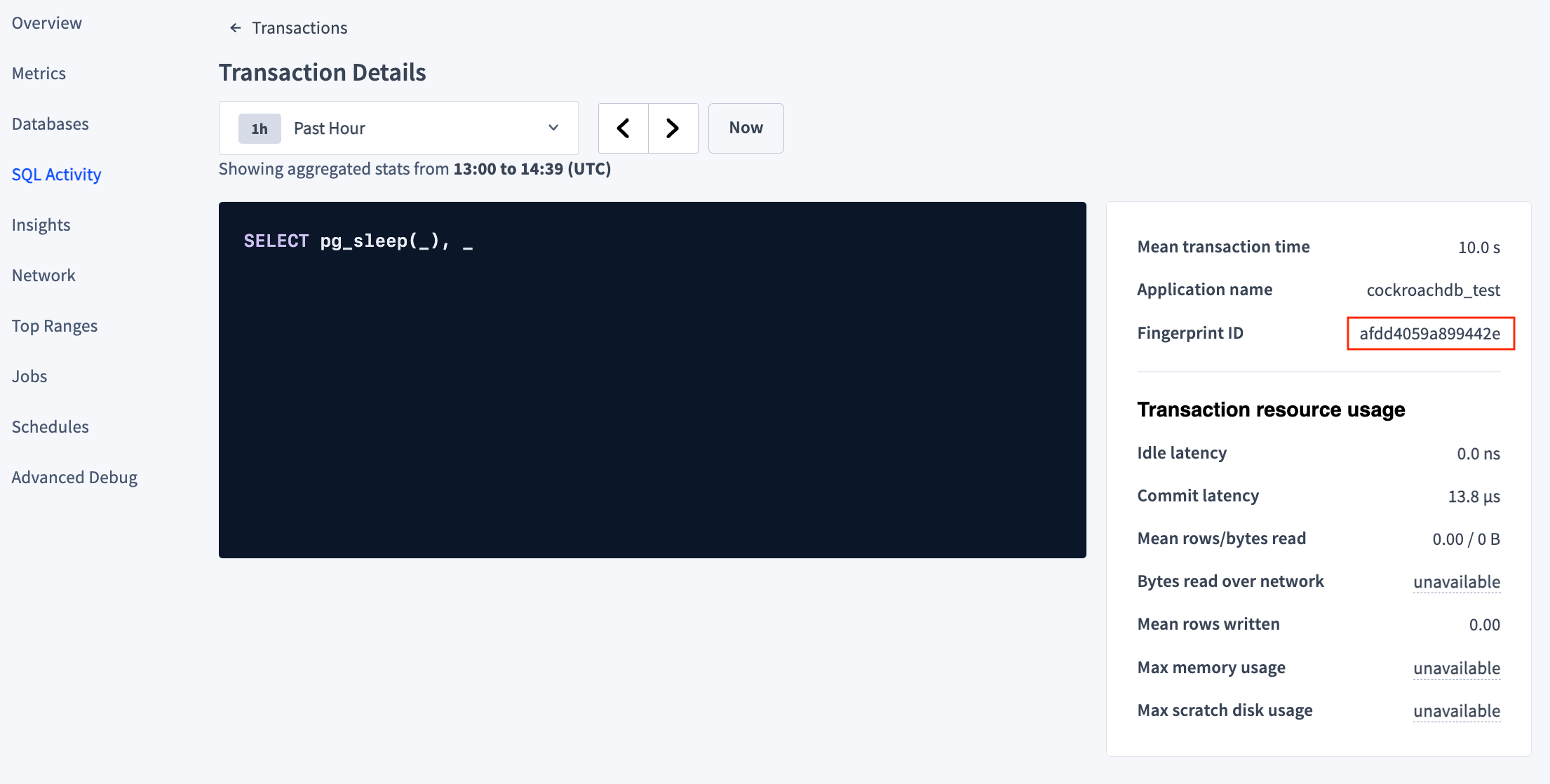

From the Transaction Details page, copy the hexadecimal Fingerprint ID for this transaction, afdd4059a899442e.

Note the decimal equivalent of the fingerprint ID in the browser’s address bar. In this case, the URL may look like https://127.0.0.1:29001/#/transaction/12672355680315327534?appNames=cockroachdb_test. The decimal value of the fingerprint is 12672355680315327534.

Step 2. Create a bundle request

Create a transaction diagnostics request to be fulfilled the next time the relevant transaction is executed:

SELECT * FROM crdb_internal.request_transaction_bundle('afdd4059a899442e', 0, '0', '0', false);

The parameters to the call to crdb_internal.request_transaction_bundle() are:

• transaction_fingerprint_id: 'afdd4059a899442e', the hexadecimal fingerprint ID from Step 1.
• sampling_probability: 0, which disables sampling.
• min_execution_latency: '0', which sets no minimum execution time.
• expires_after: '0', which keeps the request open until fulfilled or canceled.
• redacted: false, which does not redact the bundle.

Calling the function will return a request_id and a created boolean flag. This will create an entry in the system.transaction_diagnostics_request table.

> SELECT * FROM crdb_internal.request_transaction_bundle('afdd4059a899442e', 0, '0', '0', false);
      request_id      | created
----------------------+----------
  1113728276333035521 |    t

> SELECT * FROM system.transaction_diagnostics_requests;
          id          | completed | transaction_fingerprint_id | statement_fingerprint_ids | transaction_diagnostics_id |         requested_at          | min_execution_latency |       expires_at       | sampling_probability | redacted | username
----------------------+-----------+----------------------------+---------------------------+----------------------------+-------------------------------+-----------------------+------------------------+----------------------+----------+------------
  1113386248552742913 |     t     | \xafdd4059a899442e         | {"\\x00befd152e98f3f1"}   |        1113386693458034689 | 2025-10-07 14:42:18.234632+00 | NULL                  | NULL                   |                 NULL |    f     | roachprod

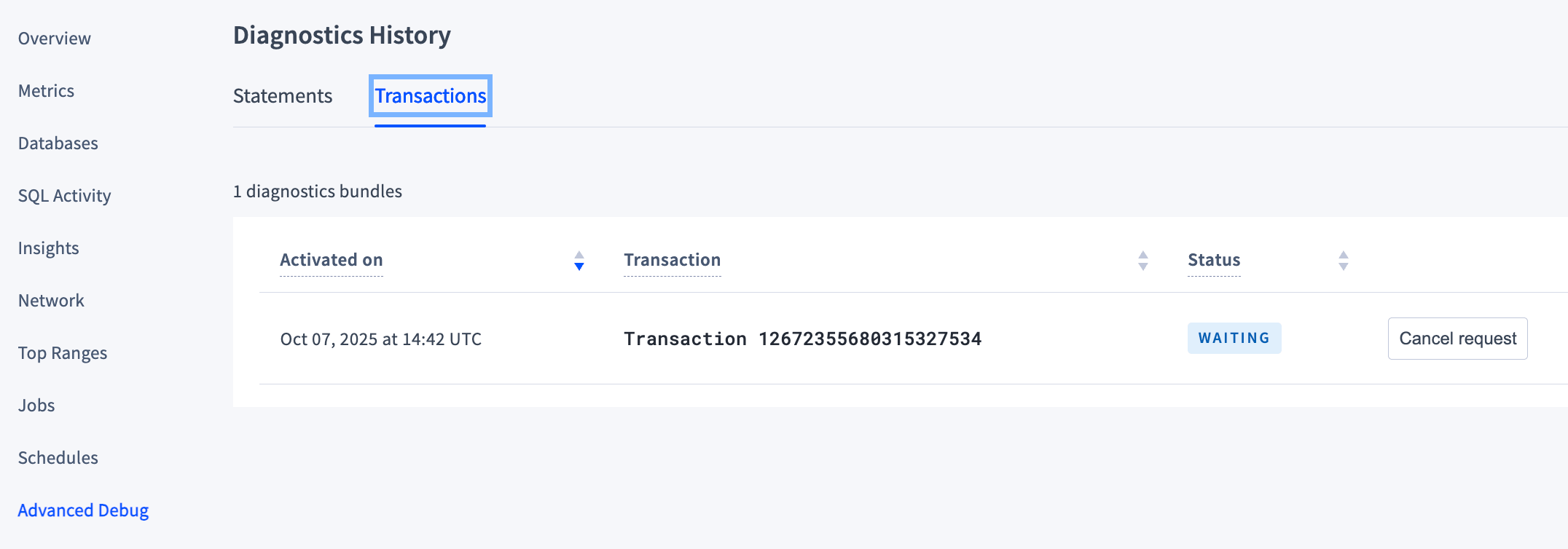

In the DB Console, go to > . Under the Transactions tab, there will be a row for the bundle request. You could also use the URL https://{host}:{port}/#/reports/diagnosticshistory?tab=Transactions. The page initially displays the following information:

• The date and time the request was Activated on.
• Transaction 12672355680315327534 (the decimal form of the transaction fingerprint ID from Step 1).
• A Status of WAITING.
• A button to Cancel request (Use this if a transaction diagnostics bundle is no longer needed).

Step 3. Download the bundle

To fulfill the request, run the explicit transaction again. Note that the constant values in the transaction do not have to exactly match the original run. In the second execution of the transaction, the number of seconds differs from the original 10 and the string differs from the original 'cockroachdb_test'.

BEGIN; SELECT pg_sleep(12), 'cockroachdb_test_2' ; COMMIT;

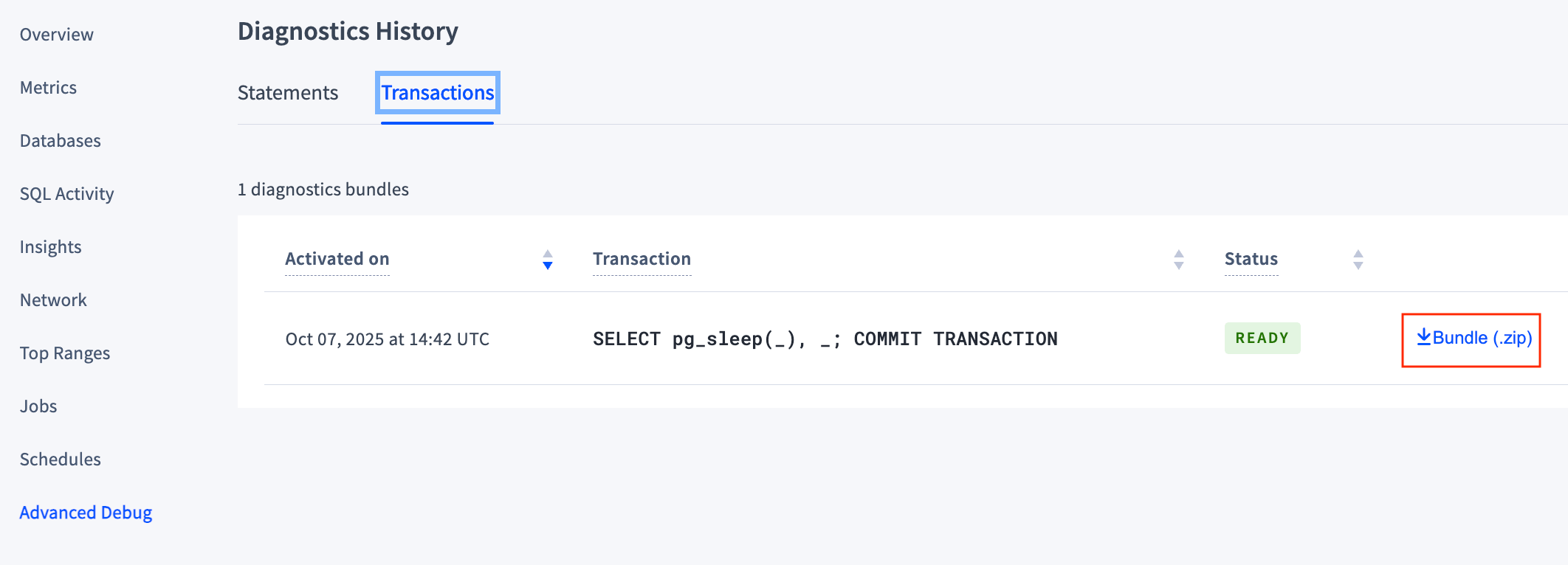

Navigate to the > page in the DB Console. Under the Transactions tab, the row for the bundle request now shows:

• The date and time the request was Activated on.
• The statements for the transaction fingerprint.
• A Status of READY.
• A Bundle.zip link.

Click the Bundle.zip link to download the completed bundle, which will be named txn-bundle-1113386693458034689.zip using the transaction_diagnostics_id from the system.transaction_diagnostics_requests table.

Step 4. Inspect the bundle

Unzip the transaction diagnostic bundle and examine its contents. It contains zip files for each statement as well as a zip file of the transaction traces:

1-SELECT.zip
2-COMMIT.zip
transaction-1113386693458034689.zip

Unzip the zip file transaction-1113386693458034689.zip. It consists of transaction traces in various formats (including a JSON file that can be ):

trace-jaeger.json
trace.json
trace.txt
