Performance Tuning Recipes

This page provides recipes for fixing performance issues in your applications.

Problems

This section describes how to use CockroachDB commands and dashboards to identify performance problems in your applications.

Observation	Diagnosis	Solution
Your application takes a long time to return results.	Excess network latency.	Use the correct for your cluster.
The Transactions page in the or shows transactions with Waiting status. Your application is experiencing degraded performance with SQLSTATE: 40001 and a message. Querying the table indicates that your transactions have experienced contention. The SQL Statement Contention graph in the or is showing spikes over time. The Transaction Restarts graph in the or is showing spikes in retries over time.	Your application is experiencing .	Reduce transaction contention.
The Top Ranges page (DB Console) displays a higher-than-expected QPS for a range. The Key Visualizer (DB Console) shows ranges with much higher-than-average write rates for the cluster.	Your cluster has .	Reduce hotspots.
The statement plan produced by or indicates that the statement uses a full table scan. Querying the crdb_internal.node_statement_statistics table indicates that you have full table scans in some statement’s plans. Viewing the statement plan on the in the DB Console indicates that the plan contains full table scans. Running the statement returns results. The in the DB Console is showing spikes over time.	Poor quality statement plans retrieve more rows than are required, leading to longer execution times.	Use indexes to reduce full table scans.
The in the DB Console shows high resource usage per node. The Problem Ranges report on the in the DB Console indicates a high number of queries per second on a subset of ranges or nodes.	You have resource contention.	Improve primary key usage.
The in the DB Console shows high service latency and QPS for INSERT and UPDATE statements.	Your tables have long write times.	Remove unnecessary indexes.
You experience high latency on queries that cannot be explained by high contention or a suboptimal query plan. You might also see high CPU on one or more nodes.	You may be scanning over large numbers of . This is similar to how a full table scan can be slow.	Configure CockroachDB to purge unneeded MVCC values.
vCPU usage has plateaued (possibly around 70%) on your large cluster.	batches may be getting throttled; check if the distsender.batches.async.throttled metric is greater than 0.	Increase the kv.dist_sender.concurrency_limit .

Solutions

This section provides solutions for common performance issues in your applications.

Transaction contention

is a state of conflict that occurs when:

• A is unable to complete due to another concurrent or recent transaction attempting to write to the same data. This is also called lock contention.
• A transaction is because it could not be placed into a among all of the currently-executing transactions. If the automatic retry is not possible or fails, a is emitted to the client, requiring a client application running under isolation to . This is also called a serialization conflict, or an isolation conflict.

Indicators that your application is experiencing transaction contention

Waiting transaction

These are indicators that a transaction is trying to access a row that has been by another, concurrent transaction issuing a or .

• The Active Executions table on the Transactions page ( or ) shows transactions with Waiting in the Status column. You can sort the table by Time Spent Waiting.
• Querying the table shows transactions where is false.

These are indicators that lock contention occurred in the past:

• Querying the table WHERE contention_type='LOCK_WAIT' indicates that your transactions have experienced lock contention.

  • This is also shown in the Transaction Executions view on the Insights page ( and ). Transaction executions will display the .

    The default tracing behavior captures a small percent of transactions, so not all contention events will be recorded. When investigating transaction contention, you can set the to always capture contention events.

• The SQL Statement Contention graph ( and ) is showing spikes over time.

If a long-running transaction is waiting due to :

1. Identify the blocking transaction.
2. Evaluate whether you can cancel the transaction. If so, cancel it to unblock the waiting transaction.
3. Optimize the transaction to reduce further contention. In particular, break down larger transactions such as into smaller ones to have transactions hold locks for a shorter duration, and use when possible to reduce conflicts with other writes.

If lock contention occurred in the past, you can identify the transactions and objects that experienced lock contention.

Transaction retry error

These are indicators that a transaction has failed due to .

• A with SQLSTATE: 40001, the string , and an error code such as or , is emitted to the client. These errors are typically seen under and not isolation.
• Querying the table WHERE contention_type='SERIALIZATION_CONFLICT' indicates that your transactions have experienced serialization conflicts.
  • This is also shown in the Transaction Executions view on the Insights page ( and ). Transaction executions will display the .

These are indicators that transaction retries occurred in the past:

• The Transaction Restarts graph ( and ) is showing spikes in transaction retries over time.

In most cases, the correct actions to take when encountering transaction retry errors are:

1. Under SERIALIZABLE isolation, update your application to support when transaction retry errors are encountered. Follow the guidance for the .
2. Take steps to in the first place. This means reducing transaction contention overall, and increasing the likelihood that CockroachDB can a failed transaction.

Fix transaction contention problems

Identify the transactions that are in conflict, and unblock them if possible. In general, take steps to reduce transaction contention.

When running under SERIALIZABLE isolation, implement so that your application can respond to that are emitted when CockroachDB cannot a transaction.

Identify conflicting transactions

• In the Active Executions table on the Transactions page ( or ), look for a waiting transaction ( Waiting status).

If you see many waiting transactions, a single long-running transaction may be blocking transactions that are, in turn, blocking others. In this case, sort the table by Time Spent Waiting to find the transaction that has been waiting for the longest amount of time. Unblocking this transaction may unblock the other transactions.

Click the transaction’s execution ID and view the following transaction execution details:

• Last Retry Reason shows the last transaction retry error received for the transaction, if applicable.
• The details of the blocking transaction, directly below the Contention Insights section. Click the blocking transaction to view its details.

Cancel a blocking transaction

1. Identify the blocking transaction and view its transaction execution details.

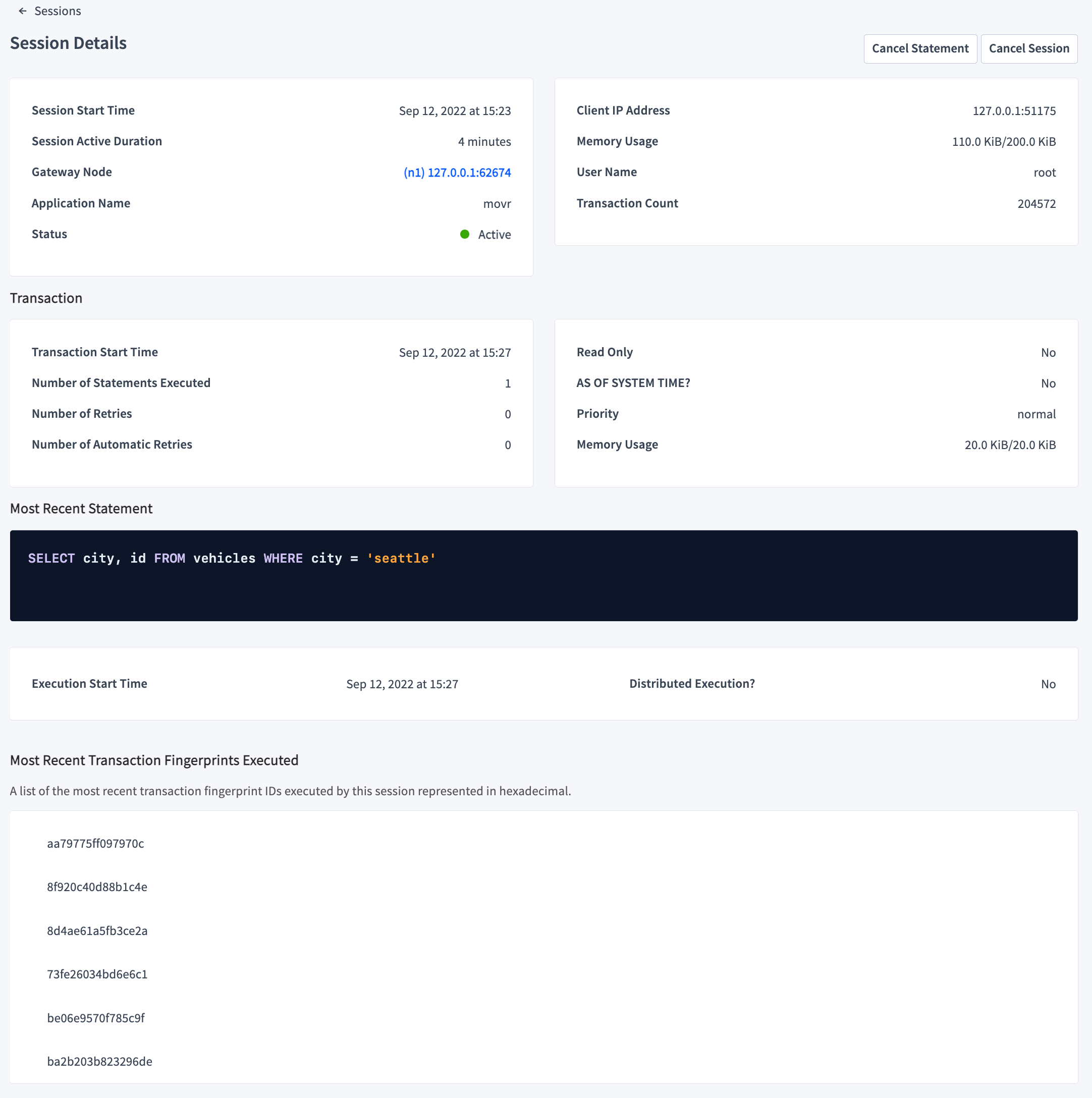

2. Click its Session ID to open the Session Details page.
3. Click Cancel Statement to cancel the Most Recent Statement and thus the transaction, or click Cancel Session to cancel the session issuing the transaction.

Identify transactions and objects that experienced lock contention

To identify transactions that experienced in the past:

• In the Transaction Executions view on the Insights page ( and ), look for a transaction with the High Contention insight. Click the transaction’s execution ID and view the transaction execution details, including the details of the blocking transaction.
• Visit the Transactions page ( and ) and sort transactions by Contention Time.

To view tables and indexes that experienced :

• Query the table to view .
• Query the table to .
• Query the table to .
• Query the table to .

Reduce transaction contention

is often reported after it has already resolved. Therefore, preventing contention before it affects your cluster’s performance is a more effective approach:

• Limit the number of affected rows by following (e.g., avoiding full scans, creating secondary indexes, etc.). Not only will transactions run faster, lock fewer rows, and hold locks for a shorter duration, but the chances of when the transaction’s , due to a conflicting write, are decreased because of a smaller read set (i.e., a smaller number of rows read).
• Break down larger transactions (e.g., ) into smaller ones to have transactions hold locks for a shorter duration. For example, use to group multiple clauses together in a single SQL statement. This will also decrease the likelihood of . For instance, as the size of writes (number of rows written) decreases, the chances of the transaction’s timestamp getting bumped by concurrent reads decreases.
• Use to aggressively lock rows that will later be updated in the transaction. Updates must operate on the most recent version of a row, so a concurrent write to the row will cause a retry error (). Locking early in the transaction forces concurrent writers to block until the transaction is finished, which prevents the retry error. Note that this locks the rows for the duration of the transaction; whether this is tenable will depend on your workload. For more information, see When and why to use SELECT FOR UPDATE in CockroachDB.
• Use historical reads (), preferably or when possible to reduce conflicts with other writes. This reduces the likelihood of errors as fewer writes will happen at the historical timestamp. More specifically, writes’ timestamps are less likely to be pushed by historical reads as they would . Note that if the AS OF SYSTEM TIME value is below the closed timestamp, the read cannot be invalidated.
• When replacing values in a row, use and specify values for all columns in the inserted rows. This will usually have the best performance under contention, compared to combinations of , , and .
• If applicable to your workload, assign and separate columns that are frequently read and written into separate columns. Transactions will operate on disjoint column families and reduce the likelihood of conflicts.
• For workloads where large or transactions run concurrently over similar key ranges, watch for anchor hotspots (for example, many concurrent transactions with on the same ). In these cases, consider enabling the cluster setting to randomize the location of transaction anchor keys. This can spread transaction records across ranges and reduce hotspotting. Only use this setting after confirming anchor hotspots via contention and range-level observability.
• As a last resort, consider adjusting the using the kv.closed_timestamp.target_duration to reduce the likelihood of long-running write transactions having their . This setting should be carefully adjusted if no other mitigations are available because there can be downstream implications (e.g., historical reads, change data capture feeds, statistics collection, handling zone configurations, etc.). For example, a transaction A is forced to refresh (i.e., change its timestamp) due to hitting the maximum interval (closed timestamps enable and ). This can happen when transaction A is a long-running transaction, and there is a write by another transaction to data that A has already read.

If you increase the kv.closed_timestamp.target_duration setting, it means that you are increasing the amount of time by which the data available in and lags behind the current state of the cluster. In other words, there is a trade-off here: if you absolutely must execute long-running transactions that execute concurrently with other transactions that are writing to the same data, you may have to settle for longer delays on Follower Reads and/or CDC to avoid frequent serialization errors. The anomaly that would be exhibited if these transactions were not retried is called write skew.

Hotspots

Hotspots are a symptom of resource contention and can create problems as requests increase, including excessive transaction contention.

For a detailed explanation of hotspot causes and mitigation strategies, refer to the and the pages.

Indicators that your cluster has hotspots

• The CPU Percent graph on the and dashboards (DB Console) shows spikes in CPU usage.
• The Top Ranges list on the (DB Console) displays a higher-than-expected QPS for a range.
• The (DB Console) shows for the cluster.

If you find hotspots, use the and to identify the ranges with excessive traffic. Then take steps to reduce hotspots.

Reduce hotspots

• Use index keys with a random distribution of values, so that transactions over different rows are more likely to operate on separate data ranges. See the on row IDs for suggestions.
• Place parts of the records that are modified by different transactions in different tables. That is, increase normalization. However, there are benefits and drawbacks to increasing normalization.
  • Benefits of increasing normalization:
    • Can improve performance for write-heavy workloads. This is because, with increased normalization, a given business fact must be written to one place rather than to multiple places.
    • Allows separate transactions to modify related underlying data without causing .
    • Reduces the chance of data inconsistency, since a given business fact must be written only to one place.
    • Reduces or eliminates data redundancy.
    • Uses less disk space.
  • Drawbacks of increasing normalization:
    • Can reduce performance for read-heavy workloads. This is because increasing normalization results in more joins, and can make the SQL more complicated in other ways.
    • More complex data model.
  • In general:
    • Increase normalization for write-intensive and read/write-intensive transactional workloads.
    • Do not increase normalization for read-intensive reporting workloads.
• If the application strictly requires operating on very few different index keys, consider using so that each index key can be served by a separate group of nodes in the cluster.
• If you are working with a table that must be indexed on sequential keys, consider using . For details about the mechanics and performance improvements of hash-sharded indexes in CockroachDB, see the blog post Hash Sharded Indexes Unlock Linear Scaling for Sequential Workloads. As part of this, we recommend doing thorough performance testing with and without hash-sharded indexes to see which works best for your application.
• To avoid read hotspots:

  • Increase data distribution, which will allow for more ranges. The hotspot exists because the data being accessed is all co-located in one range.

  • Increase across more nodes in the same range. Most transactional reads must go to the leaseholder in CockroachDB, which means that opportunities for load balancing over replicas are minimal.

    However, the following features do permit load balancing over replicas:

    • .

    • (both the bounded staleness and the exact staleness kinds).

      In these cases, more replicas will help, up to the number of nodes in the cluster.

Statements with full table scans

Full table scans often result in poor statement performance.

Indicators that your application has statements with full table scans

• The following query returns statements with full table scans in their statement plan:

  SHOW FULL TABLE SCANS;


• The following query against the crdb_internal.node_statement_statistics table returns results:

  SELECT count(*) as total_full_scans
  FROM crdb_internal.node_statement_statistics
  WHERE full_scan = true;


• Viewing the statement plan on the in the DB Console indicates that the plan contains full table scans.

• The statement plans returned by the and indicate that there are full table scans.

• The in the DB Console is showing spikes over time.

Fix full table scans in statements

Not every full table scan is an indicator of poor performance. The may decide on a full table scan when other or would result in longer execution time.

that result in full table scans and consider adding .

In the DB Console, visit the on the and check if there are any insights to create missing indexes. These missing index recommendations are generated based on . A missing index may cause a statement to have a . If the execution was slow, based on the insights threshold, then it’s likely the create index recommendation is valid. If the plan had a full table scan, it’s likely that it should be removed with an index.

Also see .

Suboptimal primary keys

Indicators that your tables are using suboptimal primary keys

• The in the DB Console shows high resource usage per node.
• The Problem Ranges report on the in the DB Console indicates a high number of queries per second on a subset of ranges or nodes.

Fix suboptimal primary keys

Evaluate the schema of your table to see if you can redistribute data more evenly across multiple ranges. Specifically, make sure you have followed .

If your application with a small dataset (for example, a dataset that contains few index key values) is experiencing resource contention, consider splitting your tables and indexes to to reduce resource contention.

Slow writes

Indicators that your tables are experiencing slow writes

If the in the DB Console shows high service latency when the QPS of INSERT and UPDATE statements is high, your tables are experiencing slow writes.

Fix slow writes

can improve application read performance. However, there is overhead in maintaining secondary indexes that can affect your write performance. You should profile your tables periodically to determine whether an index is worth the overhead. To identify infrequently accessed indexes that could be candidates to drop, do one of the following:

• In the DB Console, visit the on the and check if there are any insights to drop unused indexes.

• In the DB Console, visit the and check databases and tables for to drop unused indexes.

• Run a join query against the and crdb_internal.table_indexes tables:

  SELECT ti.descriptor_name as table_name, ti.index_name, total_reads, last_read
  FROM crdb_internal.index_usage_statistics AS us
  JOIN crdb_internal.table_indexes ti
  ON us.index_id = ti.index_id
  AND us.table_id = ti.descriptor_id
  ORDER BY total_reads ASC;

                table_name     |                  index_name                   | total_reads |           last_read
  -----------------------------+-----------------------------------------------+-------------+--------------------------------
    vehicle_location_histories | vehicle_location_histories_pkey               |           1 | 2021-09-28 22:59:03.324398+00
    rides                      | rides_auto_index_fk_city_ref_users            |           1 | 2021-09-28 22:59:01.500962+00
    rides                      | rides_auto_index_fk_vehicle_city_ref_vehicles |           1 | 2021-09-28 22:59:02.470526+00
    user_promo_codes           | user_promo_codes_pkey                         |         456 | 2021-09-29 00:01:17.063418+00
    promo_codes                | promo_codes_pkey                              |         910 | 2021-09-29 00:01:17.062319+00
    vehicles                   | vehicles_pkey                                 |        3591 | 2021-09-29 00:01:18.261658+00
    users                      | users_pkey                                    |        5401 | 2021-09-29 00:01:18.260198+00
    rides                      | rides_pkey                                    |       45658 | 2021-09-29 00:01:18.258208+00
    vehicles                   | vehicles_auto_index_fk_city_ref_users         |       87119 | 2021-09-29 00:01:19.071476+00
  (9 rows)


  Use the values in the total_reads and last_read columns to identify indexes that have low usage or are stale and can be dropped.

Too many MVCC values

Indicators that your tables have too many MVCC values

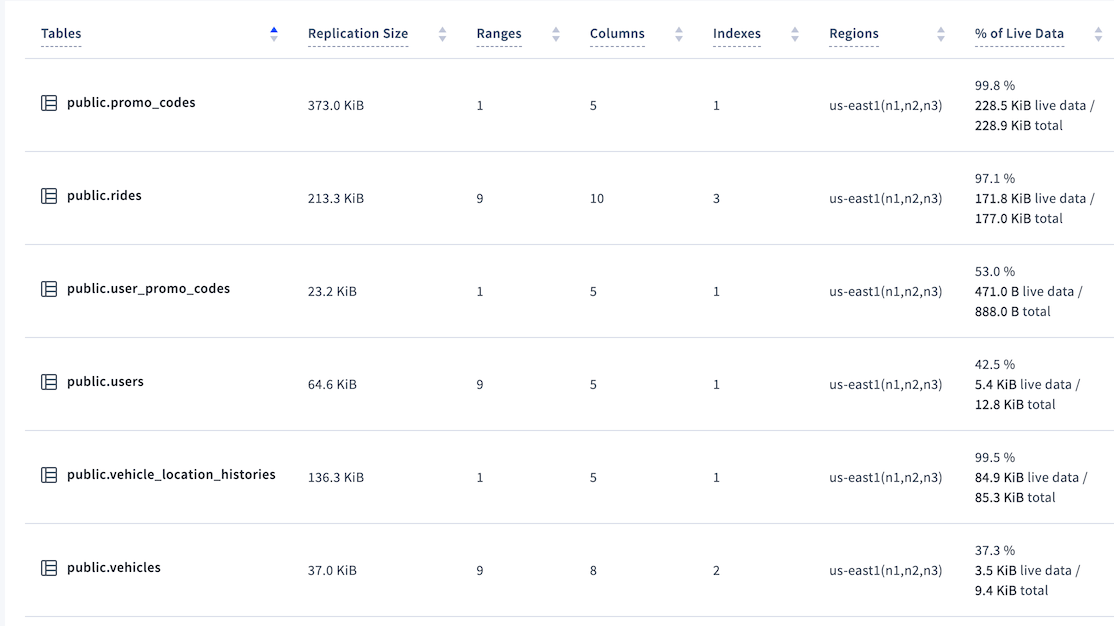

In the DB Console, the of the for a given database shows the percentage of live data for each table. For example:

In this example, at 37.3% the vehicles table would be considered to have a low percentage of live data. In the worst cases, the percentage can be 0%.

A low percentage of live data can cause statements to scan more data () than required, which can reduce performance.

Configure CockroachDB to purge MVCC values

Reduce the zone configuration of the table as much as possible.

KV DistSender batches being throttled (performance impact to larger clusters)

If you see distsender.batches.async.throttled values that aren’t zero (or aren’t consistently near zero), experiment with increasing the and Streamer concurrency using the kv.dist_sender.concurrency_limit and kv.streamer.concurrency_limit , respectively. In v24.3, these default values were increased by 6x and 12x, respectively. For versions prior to v24.3, increasing the values by 6x and 12x would be a good starting point.

To validate a successful result, you can increase the values of these cluster settings until you see no new throttled requests and no increase in tail latency (e.g., p99.999).

This does increase the amount of RAM consumption per node to handle the increased concurrency, but it’s proportional to the load and an individual flow’s memory consumption should not be significant. Bad outcomes include increased tail latency or too much memory consumption with no decrease in the number of throttled requests, in which case you should return the settings to their default values.

See also

If you aren’t sure whether SQL query performance needs to be improved, see .
