MovR

MovR is a fictional vehicle-sharing company created to demonstrate CockroachDB’s features.

Overview

The MovR example consists of the following:

• The movr dataset, which contains rows of data that populate tables in the movr database. The movr dataset is built into and .
• The MovR application, a fully-functional vehicle-sharing application, written in Python. All of MovR application source code is open-source, and available on the movr GitHub repository.

The movr database

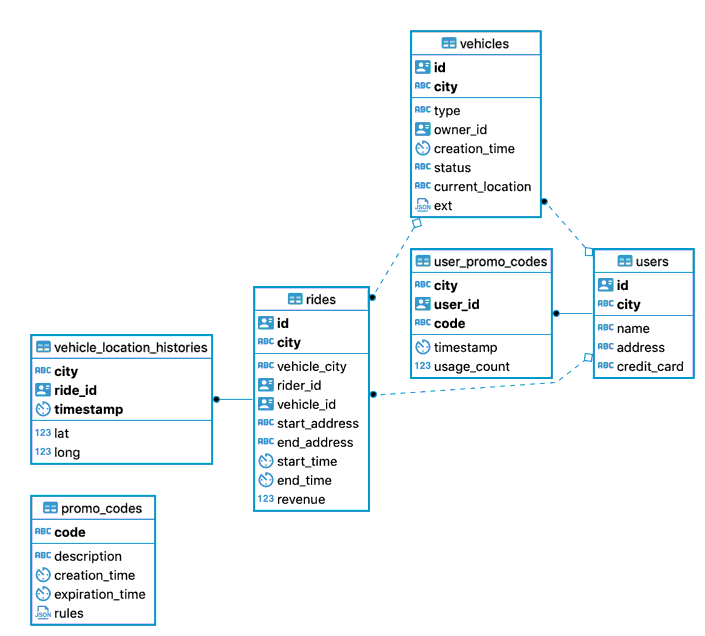

The six tables in the movr database store user, vehicle, and ride data for MovR:

Table	Description
users	People registered for the service.
vehicles	The pool of vehicles available for the service.
rides	When and where users have rented a vehicle.
promo_codes	Promotional codes for users.
user_promo_codes	Promotional codes in use by users.
vehicle_location_histories	Vehicle location history.

Generating schemas and data for MovR

You can use the cockroach demo and cockroach workload commands to load the movr database and dataset into a CockroachDB cluster.

opens a SQL shell to a temporary, in-memory cluster. To open a SQL shell to a demo cluster with the movr database preloaded and set as the , use the following command:

$ cockroach demo movr

loads sample datasets and workloads into running clusters. To load the movr database and some sample data into a running cluster, do the following:

1. Start a or local cluster.

2. Use cockroach workload to load the movr dataset:

   $ cockroach workload init movr 'postgresql://root@localhost:26257?sslcert=certs%2Fclient.root.crt&sslkey=certs%2Fclient.root.key&sslmode=verify-full&sslrootcert=certs%2Fca.crt'

   $ cockroach workload init movr 'postgresql://root@localhost:26257?sslmode=disable'


3. Use to open an interactive SQL shell and set movr as the :

   $ cockroach sql --certs-dir=certs --host=localhost:26257

   > USE movr;

   $ cockroach sql --insecure --host=localhost:26257

   > USE movr;


How the MovR application works

The workflow for MovR is as follows:

1. A user loads the app and sees the 25 closest vehicles.

   For example:

   > SELECT id, city, status FROM vehicles WHERE city='amsterdam' limit 25;


2. The user signs up for the service.

   For example:

   > INSERT INTO users (id, name, address, city, credit_card)
     VALUES ('66666666-6666-4400-8000-00000000000f', 'Mariah Lam', '88194 Angela Gardens Suite 60', 'amsterdam', '123245696');


3. In some cases, the user adds their own vehicle to share.

   For example:

   > INSERT INTO vehicles (id, city, type, owner_id,creation_time,status, current_location, ext)
     VALUES ('ffffffff-ffff-4400-8000-00000000000f', 'amsterdam', 'skateboard', '66666666-6666-4400-8000-00000000000f', current_timestamp(), 'available', '88194 Angela Gardens Suite 60', '{"color": "blue"}');


4. More often, the user reserves a vehicle and starts a ride, applying a promo code, if available and valid.

   For example:

   > SELECT code FROM user_promo_codes WHERE user_id ='66666666-6666-4400-8000-00000000000f';

   > UPDATE vehicles SET status = 'in_use' WHERE id='bbbbbbbb-bbbb-4800-8000-00000000000b';

   > INSERT INTO rides (id, city, vehicle_city, rider_id, vehicle_id, start_address,end_address, start_time, end_time, revenue)
     VALUES ('cd032f56-cf1a-4800-8000-00000000066f', 'amsterdam', 'amsterdam', '66666666-6666-4400-8000-00000000000f', 'bbbbbbbb-bbbb-4800-8000-00000000000b', '70458 Mary Crest', '', TIMESTAMP '2020-10-01 10:00:00.123456', NULL, 0.0);


5. During the ride, MovR tracks the location of the vehicle.

   For example:

   > INSERT INTO vehicle_location_histories (city, ride_id, timestamp, lat, long)
     VALUES ('amsterdam', 'cd032f56-cf1a-4800-8000-00000000066f', current_timestamp(), -101, 60);


6. The user ends the ride and releases the vehicle.

   For example:

   > UPDATE vehicles SET status = 'available' WHERE id='bbbbbbbb-bbbb-4800-8000-00000000000b';

   > UPDATE rides SET end_address ='33862 Charles Junctions Apt. 49', end_time=TIMESTAMP '2020-10-01 10:30:00.123456', revenue=88.6
     WHERE id='cd032f56-cf1a-4800-8000-00000000066f';
